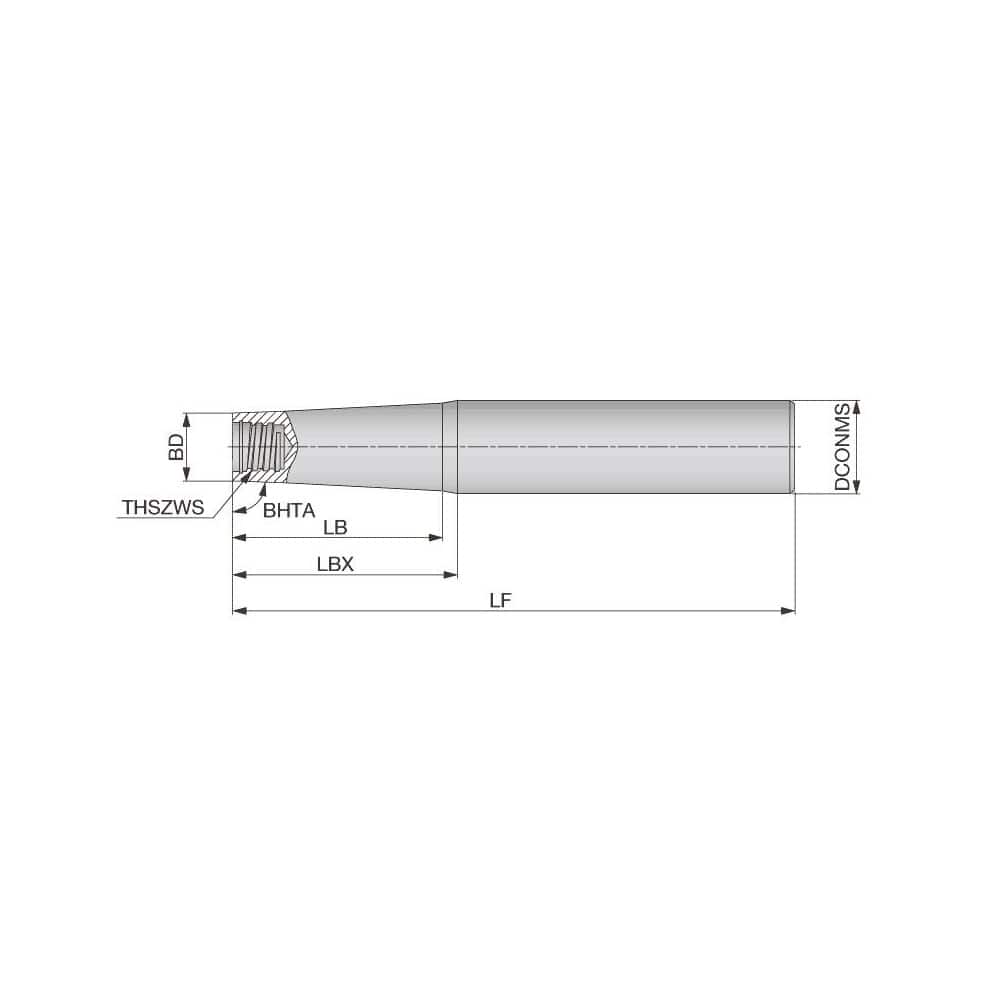

Replaceable Tip Milling Shank: Series VTS, 1-1/4″ Straight Shank S15 Neck Thread, 0.941″ Neck Dia, Solid Carbide
Item #: 29156551
Brand: Tungaloy
Model #: 6717413
Product Specifications
| Overall Length (mm) | 12.00 |
| Overall Length (Decimal Inch) | 12.0000 |
| Neck Diameter (Decimal Inch) | 0.9410 |
| Neck Thread Size | S15 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9410 |
| Toolholder Style | VTS |
| Tool Material | Solid Carbide |
| Series | VTS |
| Head Length (Decimal Inch) | 8.0000 |
| Tip Connection Size | S15 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| For Use With | Tungmeister |
