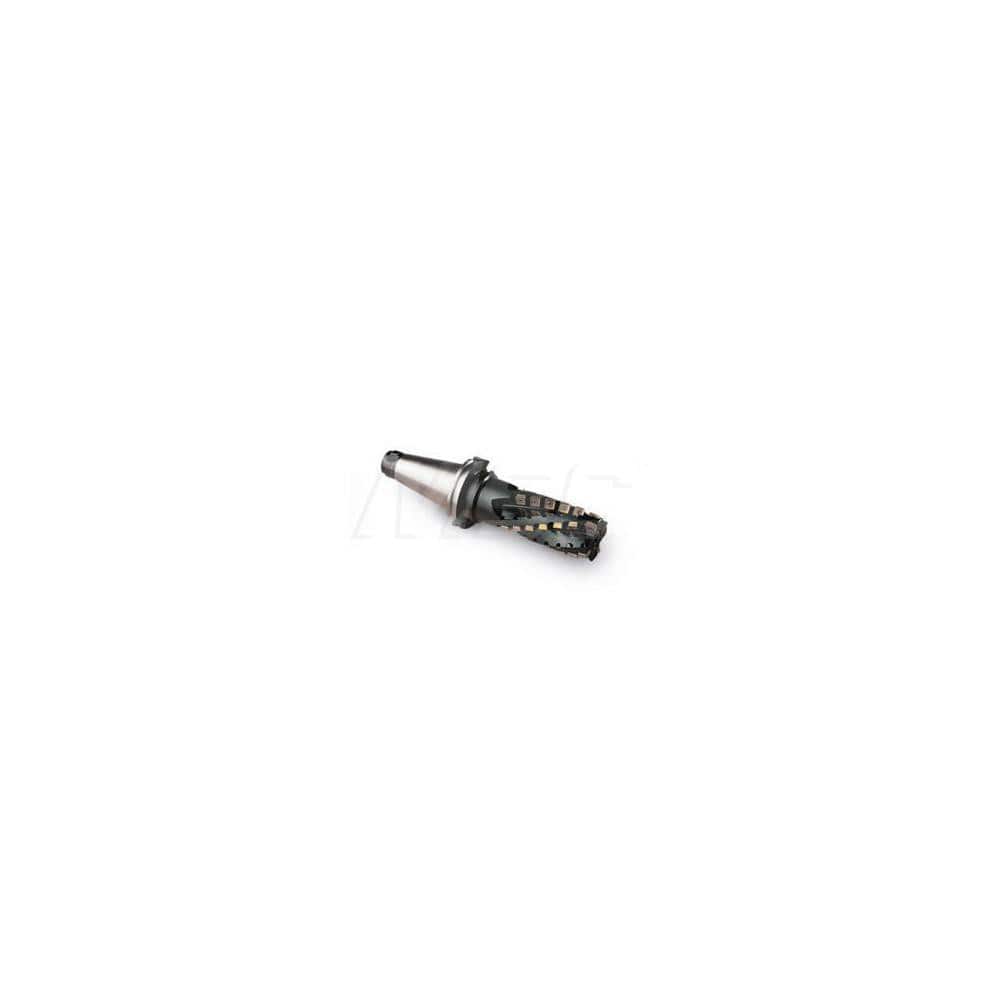

Indexable Square-Shoulder End Mill: R215.59-50063120-12.4S, Taper Shank Uses 28, No, 327.00 mm OAL
Item #: 29110590
Brand: Seco
Model #: 00026979
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 122.80 |
| Cutter Style | R215.59 |
| Shank Type | Taper |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | DIN2080 |
| Overall Length (mm) | 327.00 |
| Tool Material | Steel |
| Series | R215.59 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Head Length (mm) | 200.00 |
| Maximum RPM | 7400 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Usable Length (mm) | 200.000 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 28 |
| Coolant Through | No |
