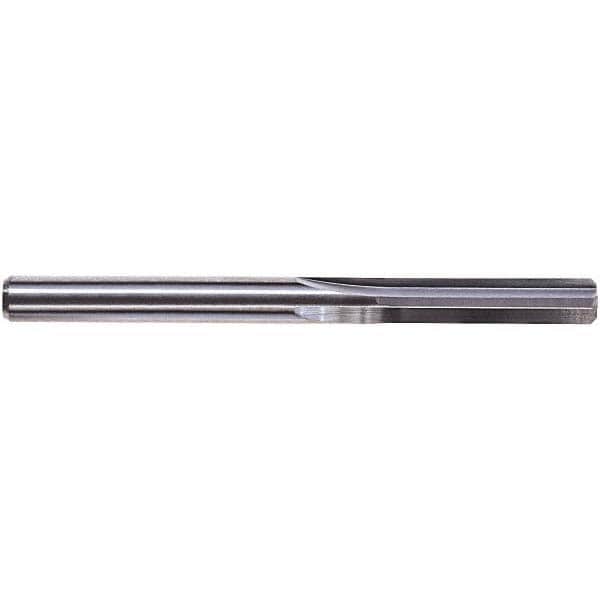

Chucking Reamer: 2.80mm Dia, 64.00mm OAL, 16.00mm Flute Length, Straight-Cylindrical Shank, Solid Carbide
Item #: 98486442
Brand: M.A. Ford
Model #: 27211020
Product Specifications
| Reamer Diameter Range (Decimal Inch) | 0.1000 - 0.1499 |
| Reamer Diameter (Decimal Inch) | 0.1102 |
| Reamer Diameter Range (mm.) | 2.00 - 3.00 |
| Reamer Diameter (mm) | 2.80 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Spiral Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (mm) | 64.00 |
| Overall Length (Decimal Inch) | 2.2500 |
| Overall Length (Inch) | 2-1/4 |
| Number of Flutes | 4 |
| Shank Diameter (mm) | 2.64 |
| Flute Length (Inch) | 5/8 |
| Flute Length (mm) | 16.00 |
| Reamer Diameter Tolerance | +0.004 to +0.008 mm |
| Over/Under Size Direction | Over |
| Series | 272 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23241611 |
| Country of Origin | UNITED STATES |
