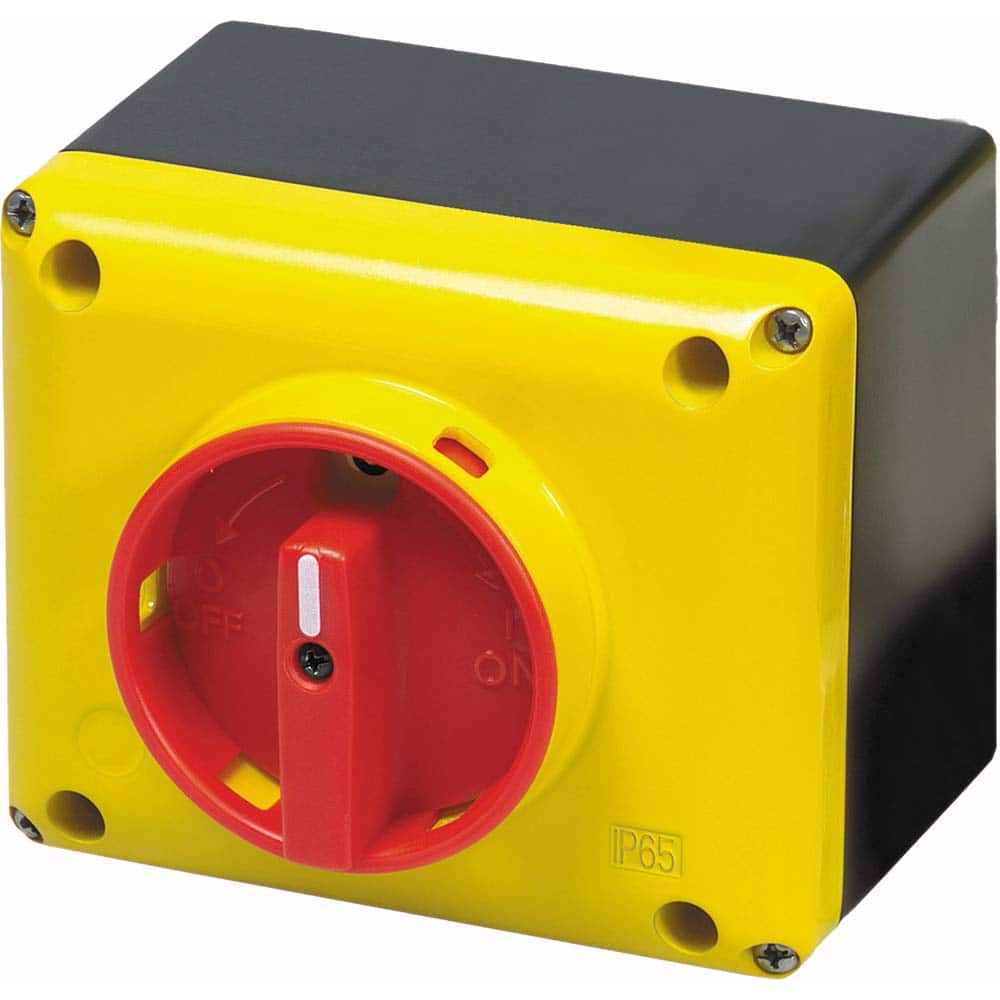

Automation Systems Interconnect - Cam & Disconnect Switches; Enclosure Type: Disconnect Enclosure ; Fused: NonFused ; Amperage: 32 ; Contact Form: 2PST ; Voltage: 600 VAC ; Horsepower at 1 Phase: 3 @ 240 VAC
Item #: 28743128
Brand: Automation Systems Interconnect
Model #: SQ025003BC10
Product Specifications
Cam & Disconnect Switches; Enclosure Type: Disconnect Enclosure ; Fused: NonFused ; Amperage: 32 ; Contact Form: 2PST ; Voltage: 600 VAC ; Horsepower at 1 Phase: 3 @ 240 VAC
| Enclosure Type | Disconnect Enclosure |
| Fused | NonFused |
| Amperage | 32 |
| Contact Form | 2PST |
| Voltage | 600 VAC |
| Horsepower at 1 Phase | 3 @ 240 VAC |
| Horsepower at 3 Phase | 15 @ 600 V |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Overall Height (mm) | 100 |
| Overall Height (Inch) | 3.9370 |
| Overall Height (Decimal Inch) | 3.9370 |
| Overall Width (mm) | 129.00 |
| Overall Width (Inch) | 4.7 |
| Overall Width (Decimal Inch) | 4.8000 |
| Standards Met | UL 508 |
