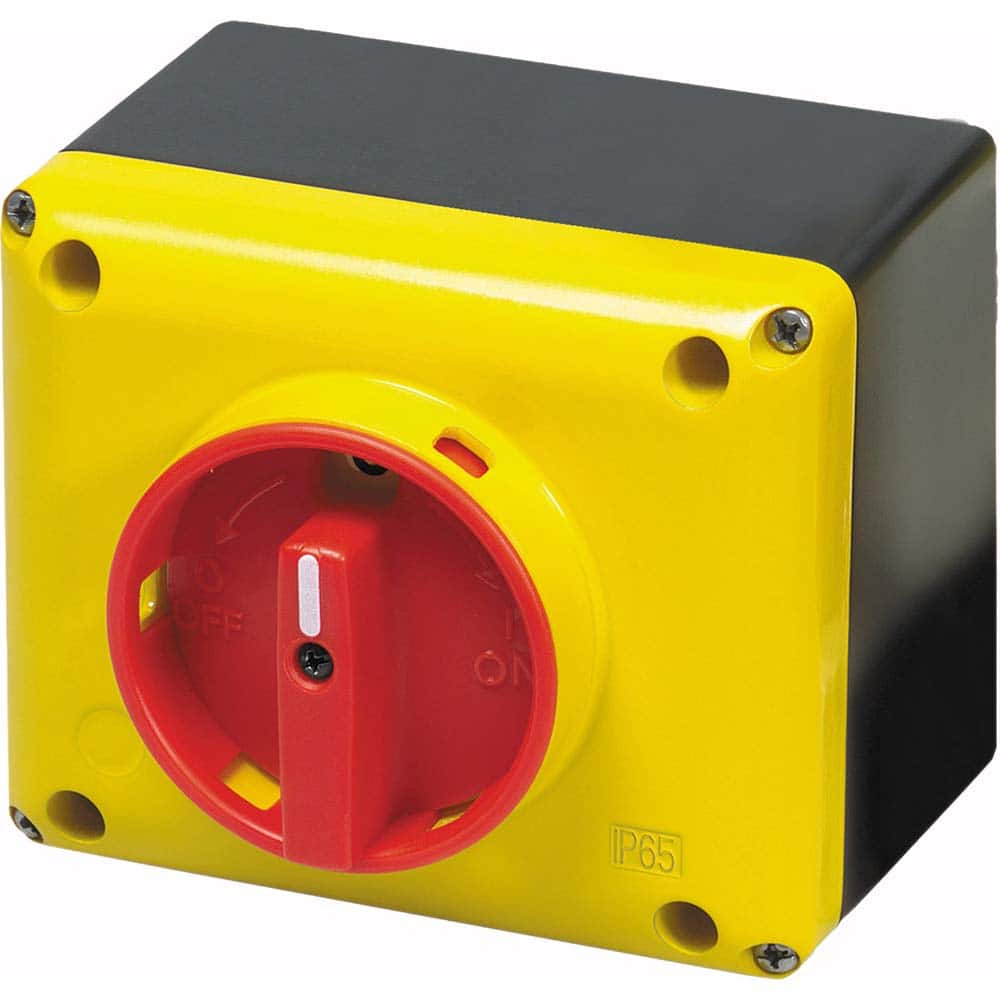

Automation Systems Interconnect - Cam & Disconnect Switches; Enclosure Type: Disconnect Enclosure ; Fused: NonFused ; Amperage: 32 ; Contact Form: 3PST ; Voltage: 690 V ; Horsepower at 1 Phase: 5 @ 230 VAC
Item #: 28742963
Brand: Automation Systems Interconnect
Model #: SQ032003BC10
Product Specifications
Cam & Disconnect Switches; Enclosure Type: Disconnect Enclosure ; Fused: NonFused ; Amperage: 32 ; Contact Form: 3PST ; Voltage: 690 V ; Horsepower at 1 Phase: 5 @ 230 VAC
| Enclosure Type | Disconnect Enclosure |
| Fused | NonFused |
| Amperage | 32 |
| Contact Form | 3PST |
| Voltage | 690 V |
| Horsepower at 1 Phase | 5 @ 230 VAC |
| Horsepower at 3 Phase | 20 @ 600 VAC |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Overall Depth (mm) | 104.90 |
| Overall Depth (Inch) | 4.09 |
| Overall Depth (Decimal Inch) | 4.1000 |
| NEMA Enclosure Rating | 4X |
| Ingress Protection Rating | IP65 |
| Overall Height (mm) | 100 |
| Overall Height (Inch) | 3.93 |
| Overall Height (Decimal Inch) | 3.9380 |
| Overall Width (Inch) | 4.72 |
| Overall Width (Decimal Inch) | 4.8000 |
| Standards Met | UL 508 |
| Amperage Rating | 40.0000 |
