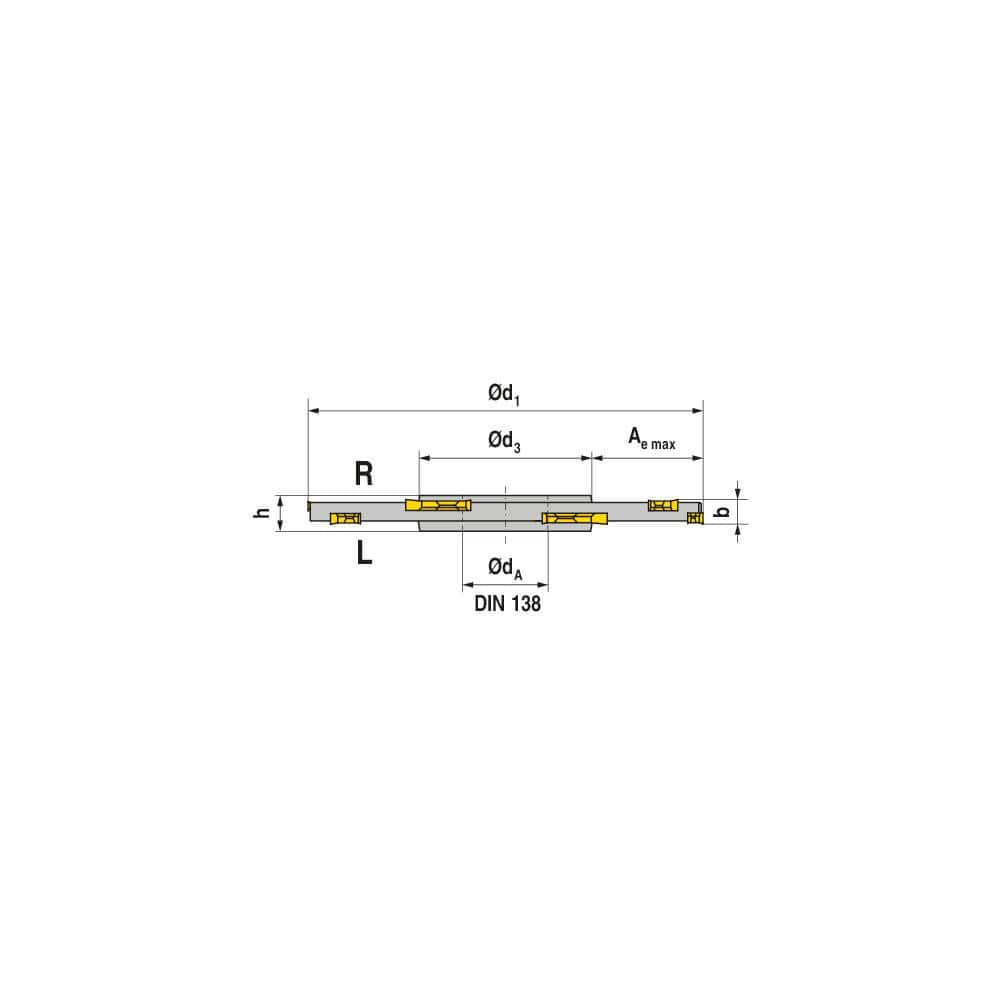

Indexable Slotting Cutter: 10 mm Cutting Width, 160 mm Cutter Dia, Arbor Hole Connection, 50 mm Depth of Cut, 40 mm Hole, Neutral Screw, Uses 16 TX Inserts, 8 Teeth, Staggered, Positive, Steel, Black Oxide Finish
Item #: 28731503
Brand: Ceratizit
Model #: 50730170
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Cutter Diameter (mm) | 160.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 16 |
| Compatible Insert Style | TX |
| Compatible Insert Size Code | TX. 225402 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | TX-STF-Z8 |
| Toolholder Style | TX.STF |
| Hub Diameter (mm) | 58.00 |
| Tool Application | Slotting |
| Primary Workpiece Material | Universal |
| Number Of Teeth | 8 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
