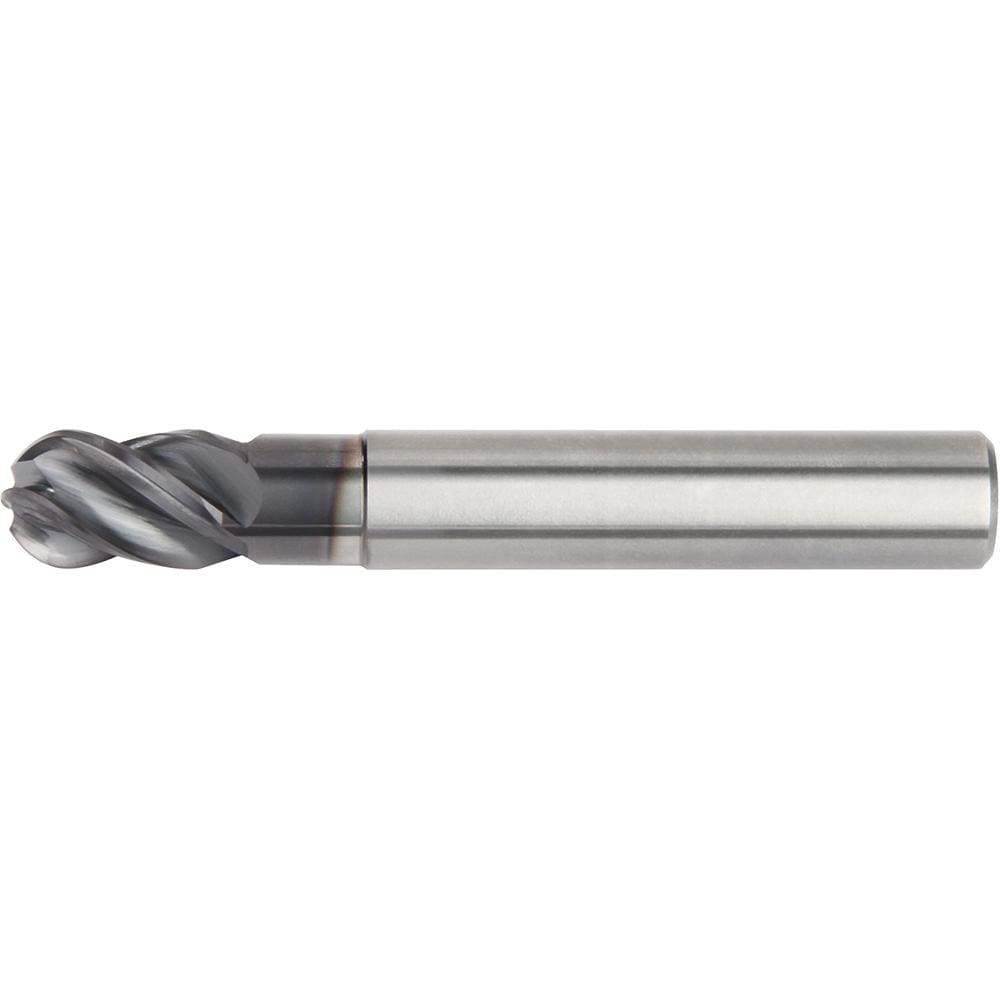

Brand: Widia / Part #: 5576821
Item #: 33977968
Brand: Widia
Model #: 5576821
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Length of Cut (mm) | 14.00 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Single |
| Extended Reach | Yes |
| Undercutting | No |
| Helix Style | High |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Neck Diameter (Decimal Inch) | 9.4000 |
| Nose Radius (Decimal Inch) | 5.0000 |
| Reach Length (mm) | 14.00 |
| Overall Length (mm) | 72.00 |
| Maximum Helix Angle | 38.00 |
| Minimum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | WP15PE |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 47N0 |
| Flute Type | Fast |
| Coolant Through | No |
