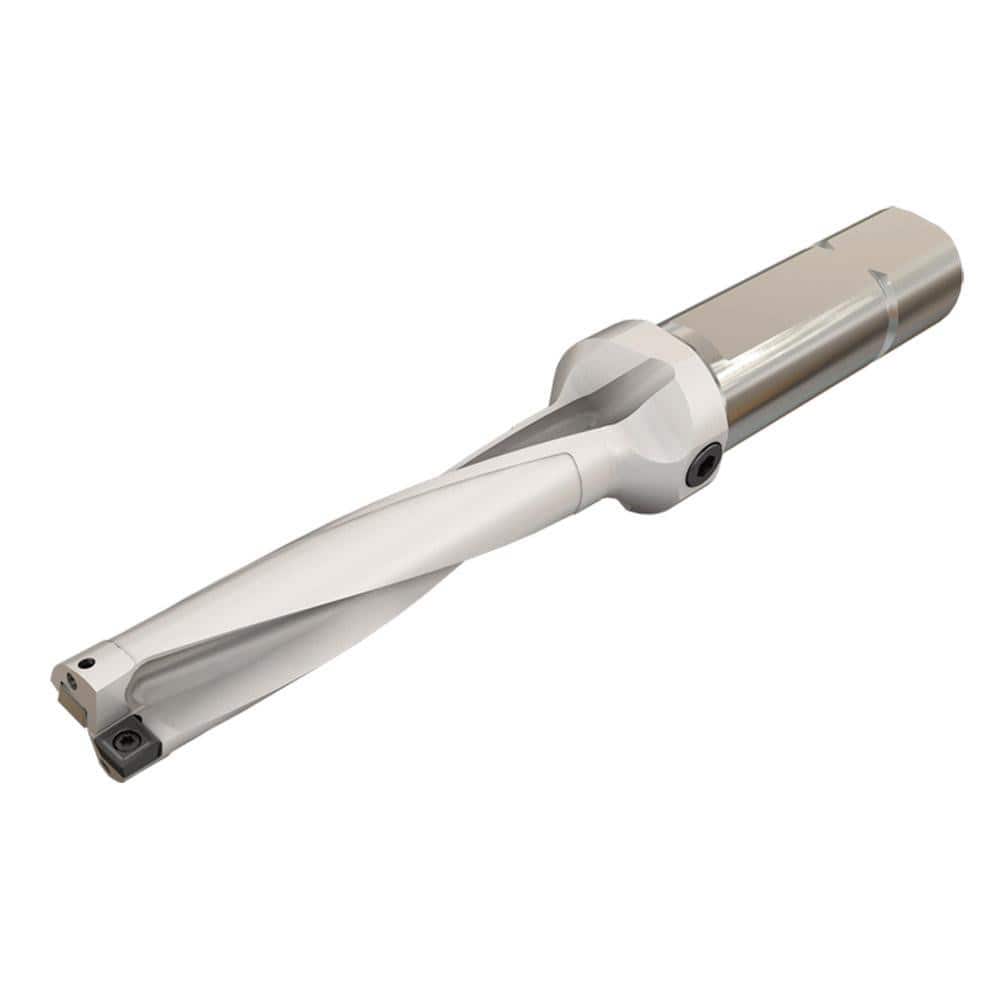

Indexable Insert Drills; Drill Style: DR; Maximum Drill Diameter (Inch): 1-1/2; Maximum Drill Diameter (Decimal Inch): 1.5000; Maximum Drill Depth (Inch): 7-1/2; Maximum Drill Depth (Decimal Inch): 7.5000; Shank Type: Straight-Cylindrical; Shank Diameter
Item #: 28662617
Brand: Iscar
Model #: 3371005
Product Specifications
| Drill Style | DR |
| Maximum Drill Diameter (Inch) | 1-1/2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (Inch) | 7-1/2 |
| Maximum Drill Depth (Decimal Inch) | 7.5000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOMT |
| Compatible Insert Size Code | 12 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.9600 |
| Overall Length (mm) | 11.96 |
| Series | DR |
| Flute Length (Decimal Inch) | 7.5000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
