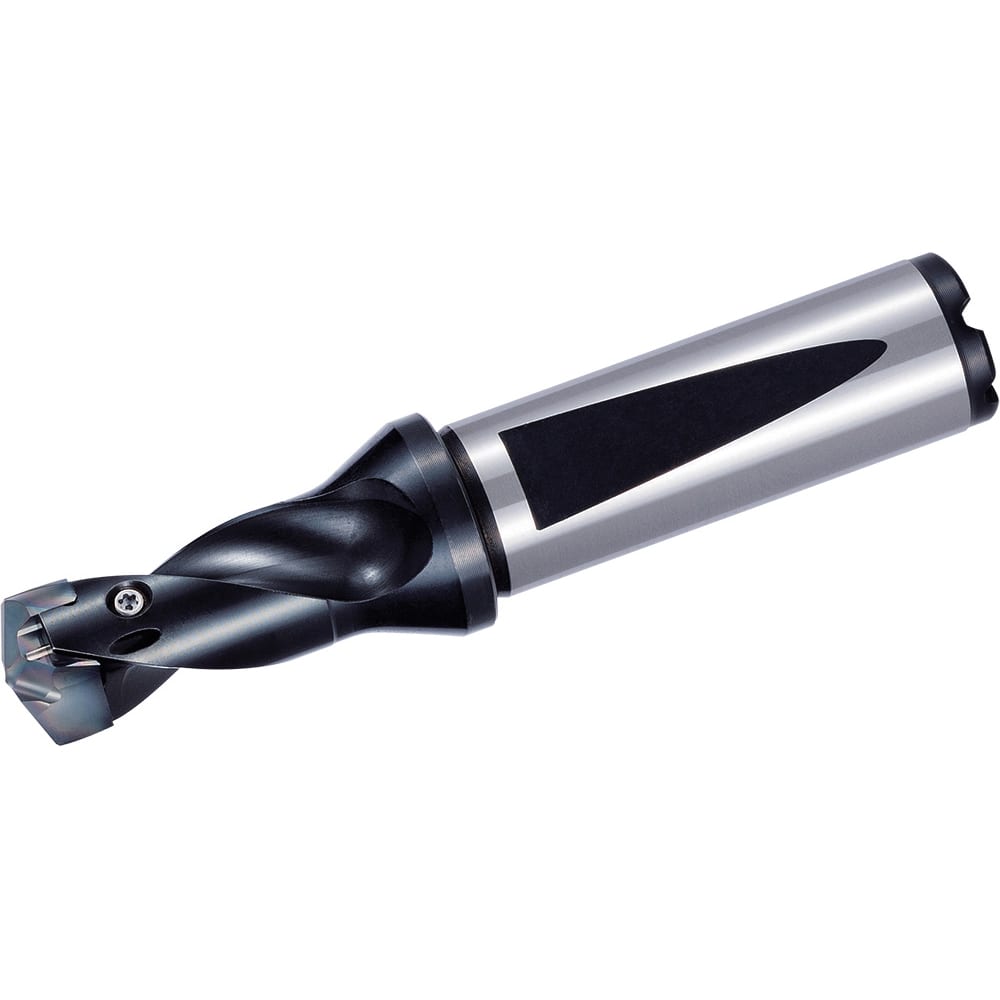

Replaceable Tip Drill: 17 to 17.99 mm Drill Dia, 27 mm Max Depth, 20 mm Flange Shank Seat Size 080, 103 mm OAL, Through Coolant
Item #: 28522522
Brand: Kyocera
Model #: THD11531
Product Specifications
| Minimum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (mm) | 17.99 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Type | Flange |
| Insert Style | DA |
| Insert Seat Size | 080 |
| Shank Diameter (mm) | 20.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Overall Length (mm) | 103.00 |
| Series | Magic Drill DRA |
| Toolholder Style | SF DRA |
| Flute Length (mm) | 27.00 |
| Body Length | 53.00 |
| Shank Length (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
