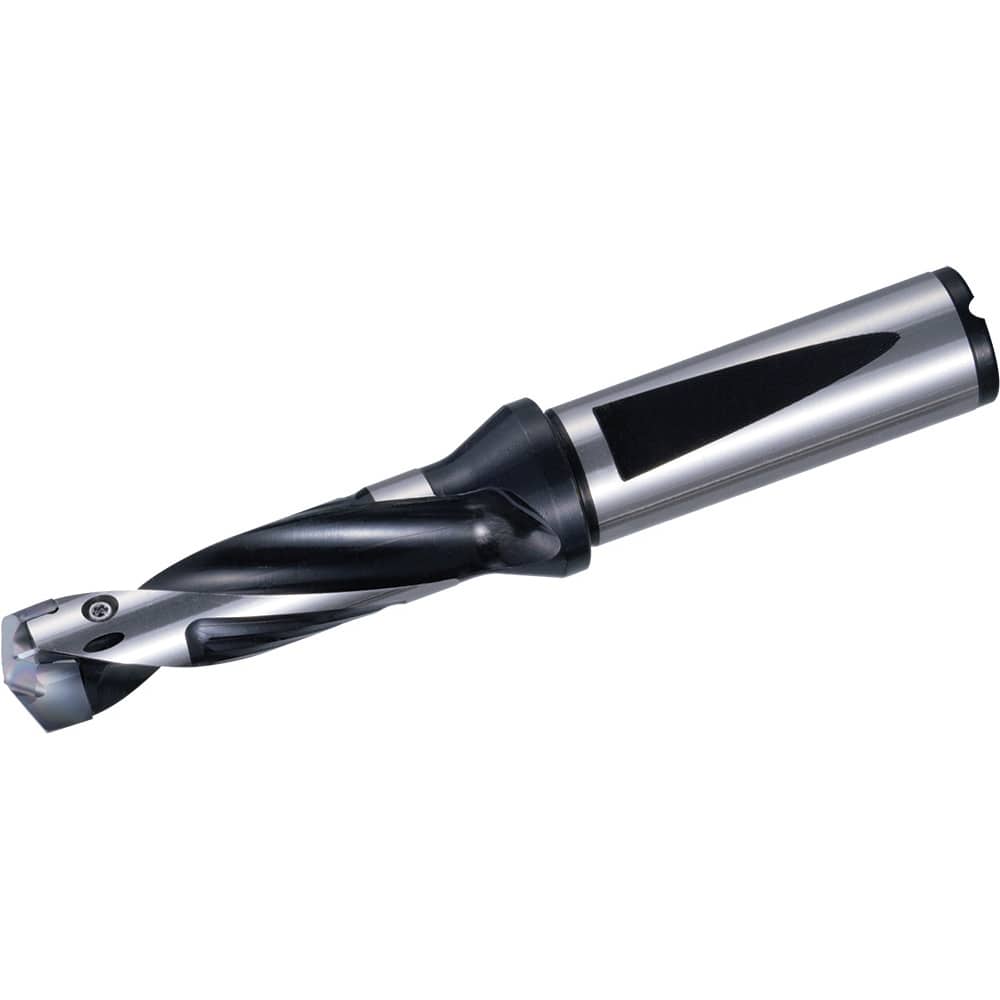

Replaceable Tip Drill: 8.5 to 8.99 mm Drill Dia, 27 mm Max Depth, 12 mm Flange Shank Seat Size 080, 86 mm OAL, Through Coolant
Item #: 28522274
Brand: Kyocera
Model #: THD08585
Product Specifications
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Type | Flange |
| Insert Style | DA |
| Insert Seat Size | 080 |
| Shank Diameter (mm) | 12.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Overall Length (mm) | 86.00 |
| Series | Magic Drill DRA |
| Toolholder Style | SF DRA |
| Flute Length (mm) | 27.00 |
| Body Length | 41.00 |
| Shank Length (mm) | 45.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
