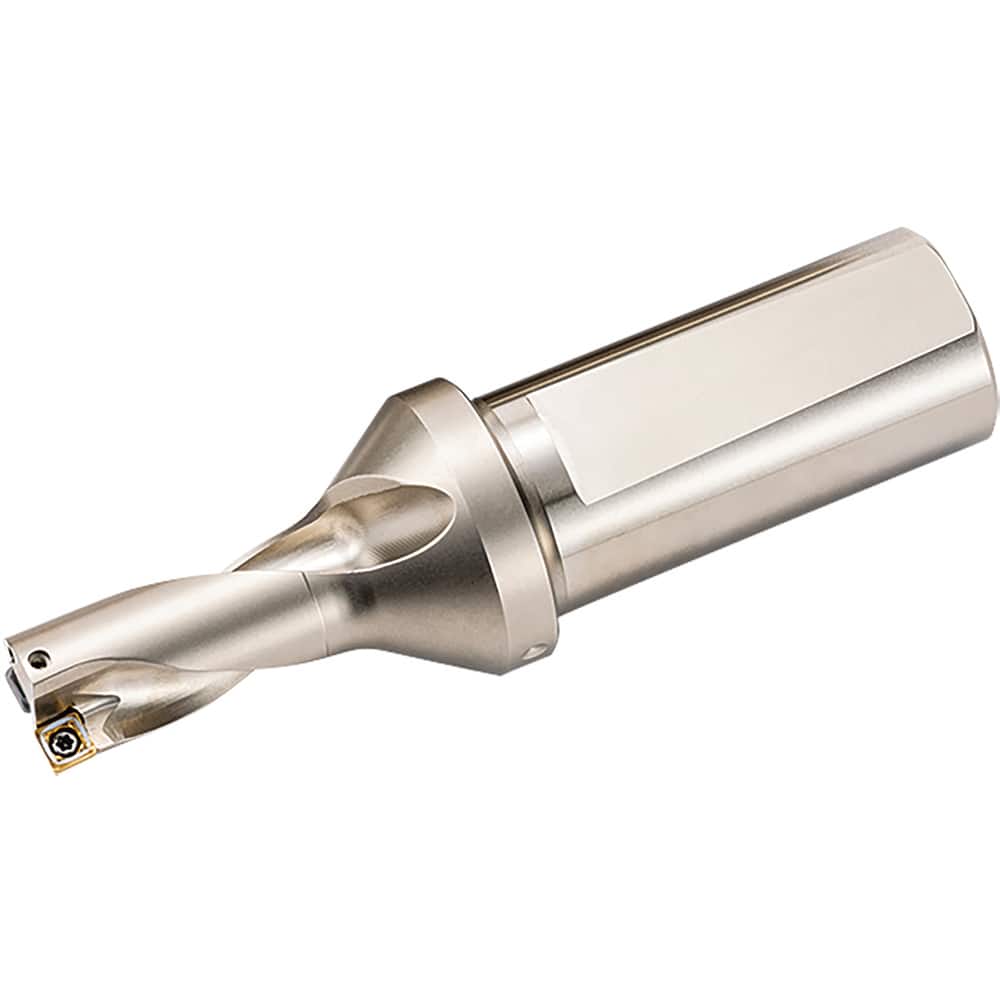

Kyocera - Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (mm): 16.50 ; Maximum Drill Depth (mm): 33.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Cutting Direction: Right Hand
Item #: 28495927
Brand: Kyocera
Model #: 8858492
Product Specifications
Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (mm): 16.50 ; Maximum Drill Depth (mm): 33.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Cutting Direction: Right Hand
| Drill Style | DRV |
| Drill Diameter (mm) | 16.50 |
| Maximum Drill Depth (mm) | 33.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 16.50 |
| Overall Length/Projection (mm) | 111.00 |
| Insert Compatibility | Inboard Insert: SCMT050210-...-I; Outboard Insert: SCMT050205-...-E |
| Flute Length (mm) | 33.00 |
| Body Length (mm) | 57.000 |
| Shank Length (mm) | 54.000 |
| Collar Diameter (mm) | 25.00 |
