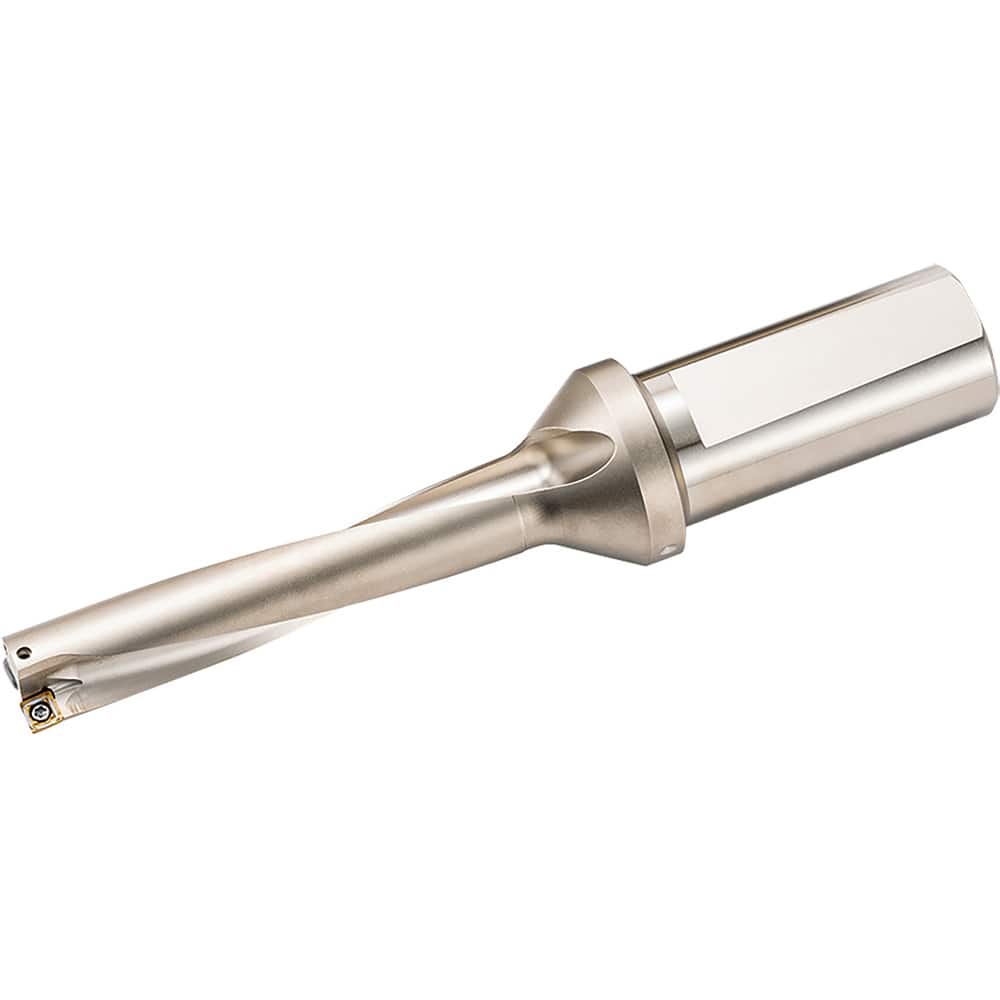

Indexable Insert Drills; Drill Style: DRV; Drill Diameter (Decimal Inch): 1.8750; Maximum Drill Diameter (Decimal Inch): 1.8750; Drill Diameter (Inch): 1-7/8; Maximum Drill Depth (Inch): 9-3/8; Maximum Drill Depth (Decimal Inch): 9.3750; Shank Type: Strai
Item #: 28495653
Brand: Kyocera
Model #: THD12037
Product Specifications
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 1.8750 |
| Maximum Drill Diameter (Decimal Inch) | 1.8750 |
| Drill Diameter (Inch) | 1-7/8 |
| Maximum Drill Depth (Inch) | 9-3/8 |
| Maximum Drill Depth (Decimal Inch) | 9.3750 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 9.3750 |
| Body Length | 270.53 |
| Shank Length (mm) | 69.00 |
| Insert Compatibility | Inboard Insert: SCMT140510...-I; Outboard Insert: SCMT140508...-E |
| Collar Diameter (mm) | 64.00 |
| Coolant Through | Yes |
