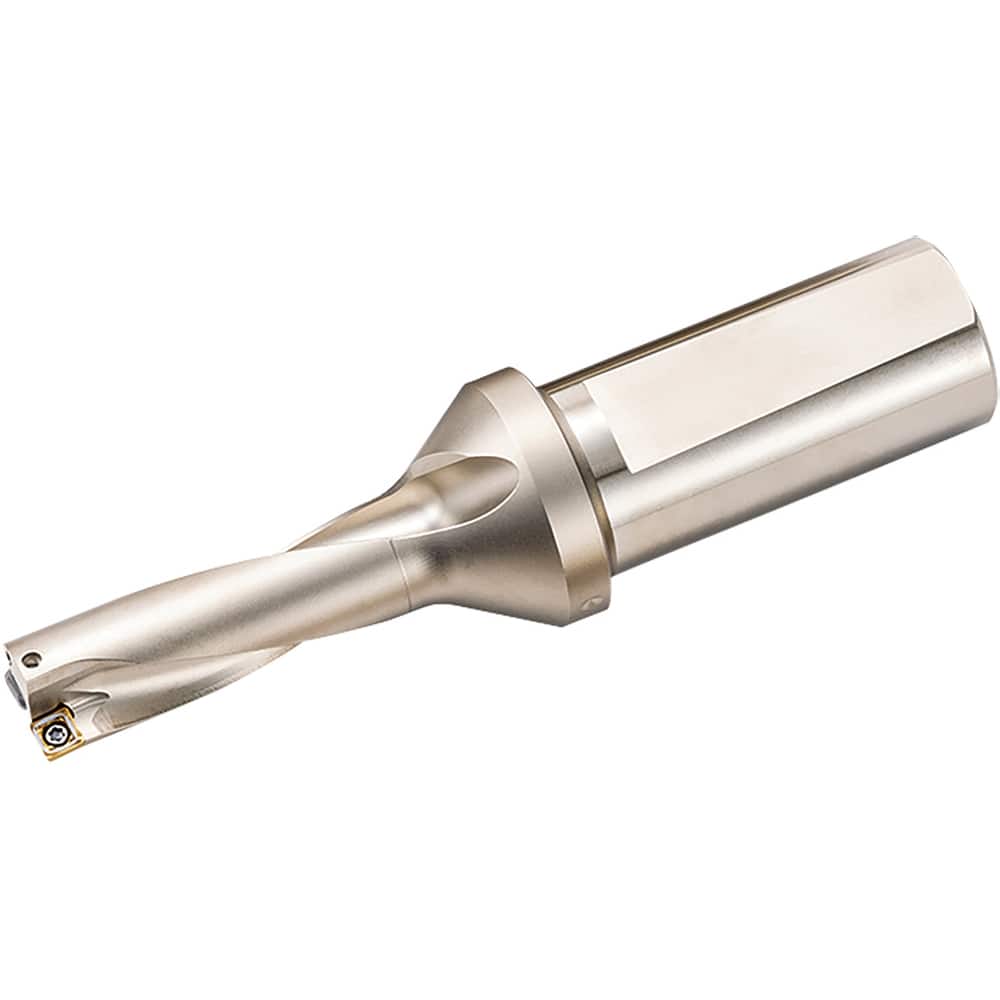

Indexable Insert Drills; Drill Style: DRV; Maximum Drill Diameter (mm): 24.00; Drill Diameter (mm): 24.00; Maximum Drill Depth (mm): 72.00; Shank Type: Straight-Cylindrical; Shank Diameter (mm): 25.00; Number of Drill Inserts: 2; Cutting Direction: Right
Item #: 28495406
Brand: Kyocera
Model #: THD11485
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 24.00 |
| Drill Diameter (mm) | 24.00 |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Flute Length (mm) | 72.00 |
| Body Length | 93.00 |
| Shank Length (mm) | 54.00 |
| Overall Length/Projection (mm) | 147.00 |
| Insert Compatibility | Inboard Insert: SCMT070310-...-I; Outboard Insert: SCMT070305-...-E |
| Collar Diameter (mm) | 25.00 |
| Coolant Through | Yes |
