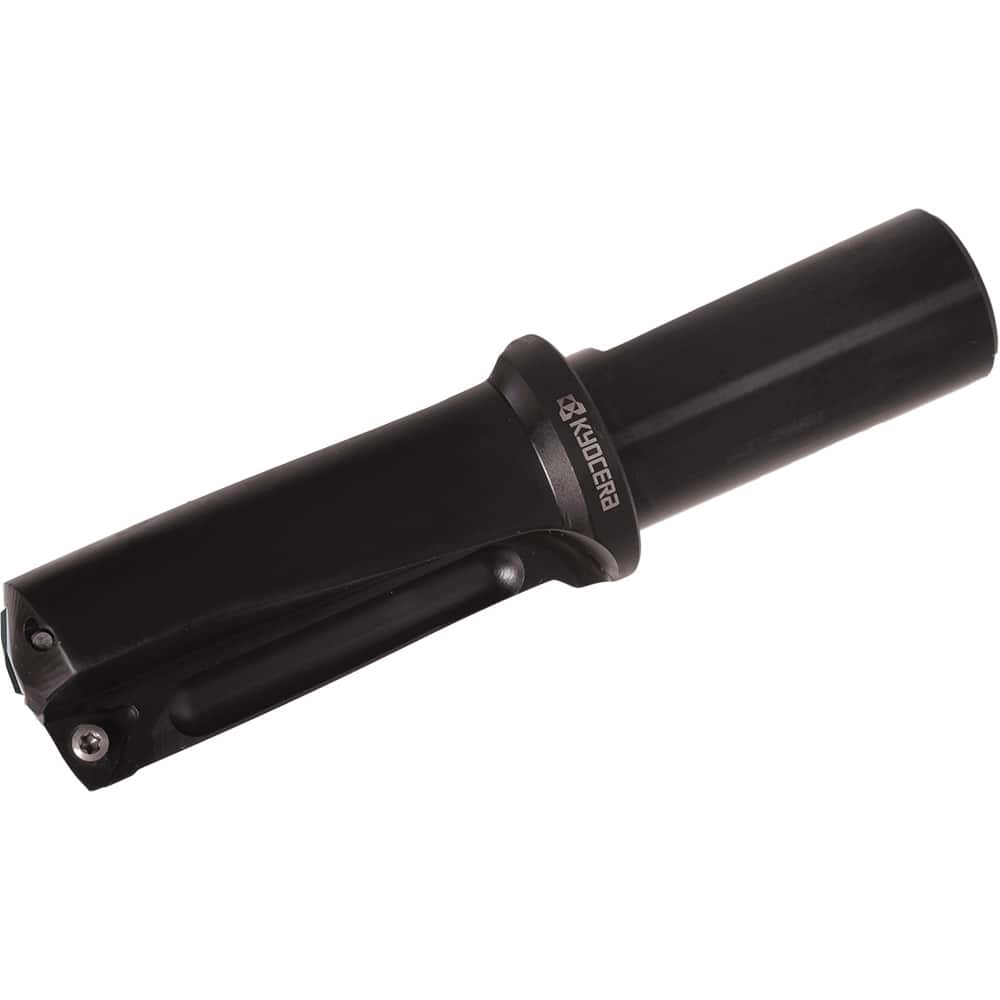

Indexable Insert Drills; Drill Style: DR; Maximum Drill Diameter (mm): 40.01; Drill Diameter (mm): 40.01; Maximum Drill Depth (mm): 73.15; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/4; Shank Diameter (Decimal Inch): 1.2500; Number of Dri
Item #: 28494946
Brand: Kyocera
Model #: OTM86242
Product Specifications
| Drill Style | DR |
| Maximum Drill Diameter (mm) | 40.01 |
| Drill Diameter (mm) | 40.01 |
| Maximum Drill Depth (mm) | 73.15 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 3 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 1.75xD |
| Flute Length (mm) | 73.15 |
| Body Length | 98.55 |
| Shank Length (Decimal Inch) | 2.2800 |
| Overall Length/Projection (mm) | 156.46 |
| Insert Compatibility | WCMX |
| Coolant Through | Yes |
