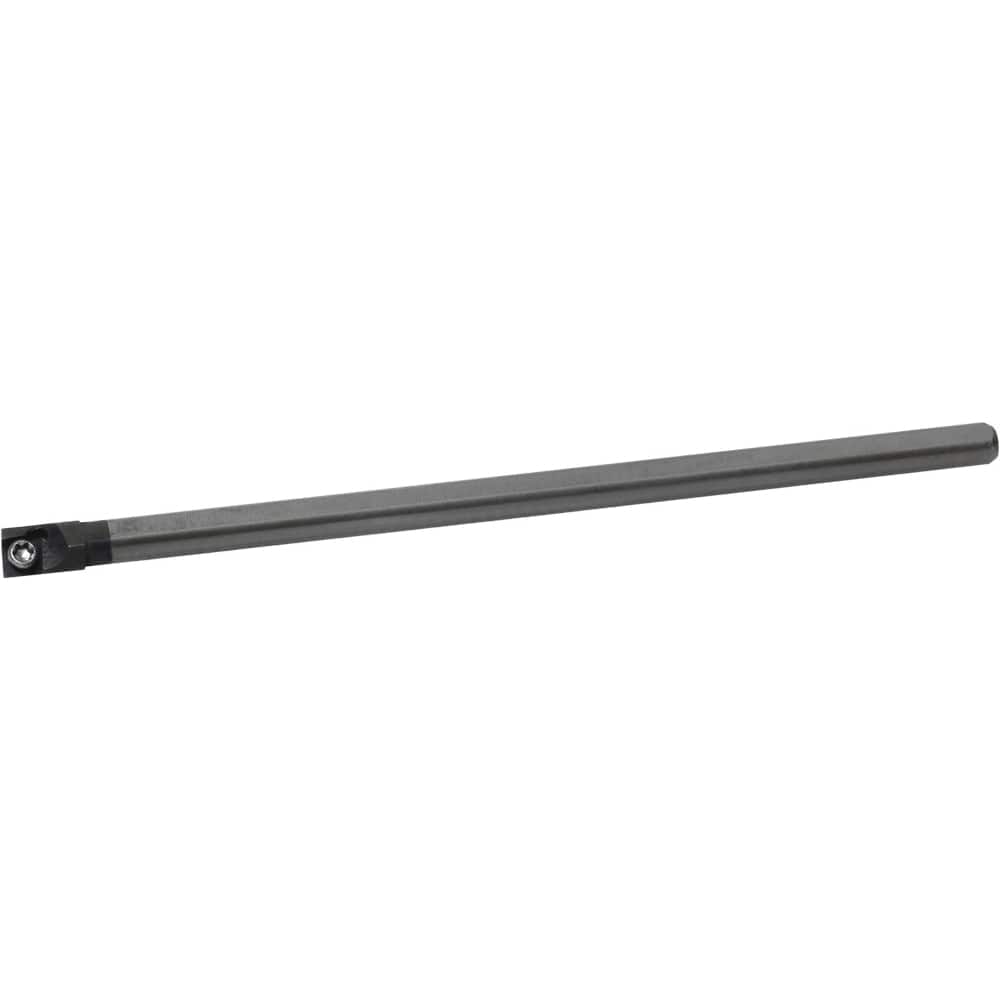

6mm Min Bore, 9mm Max Depth, Right Hand C...SCLC Indexable Boring Bar 100mm OAL, 5mm Shank Diam, 95° Lead Angle, Uses CCGT1109 ™, CCET1109 ™, CCMW1109 ™, C...SCLC Inserts
Item #: 28484863
Brand: Kyocera
Model #: THC14551
Product Specifications
| Minimum Bore Diameter (mm) | 6.00 |
| Maximum Bore Depth (mm) | 9.00 |
| Toolholder Style | C...SCLC |
| Tool Material | Steel; Solid Carbide |
| Insert Compatibility | CCGT1109?; CCMW1109?; CCET1109? |
| Shank Diameter (mm) | 5.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 100.00 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | DYNB |
| Insert Inscribed Circle (mm) | 3.50 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 3.00 |
| Multi-Use Application | Internal Facing; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0551 |
| Manufacturers Catalog Number | C05HSCLCR0306AN |
| Radial Rake | -13 |
| Coolant Through | No |
