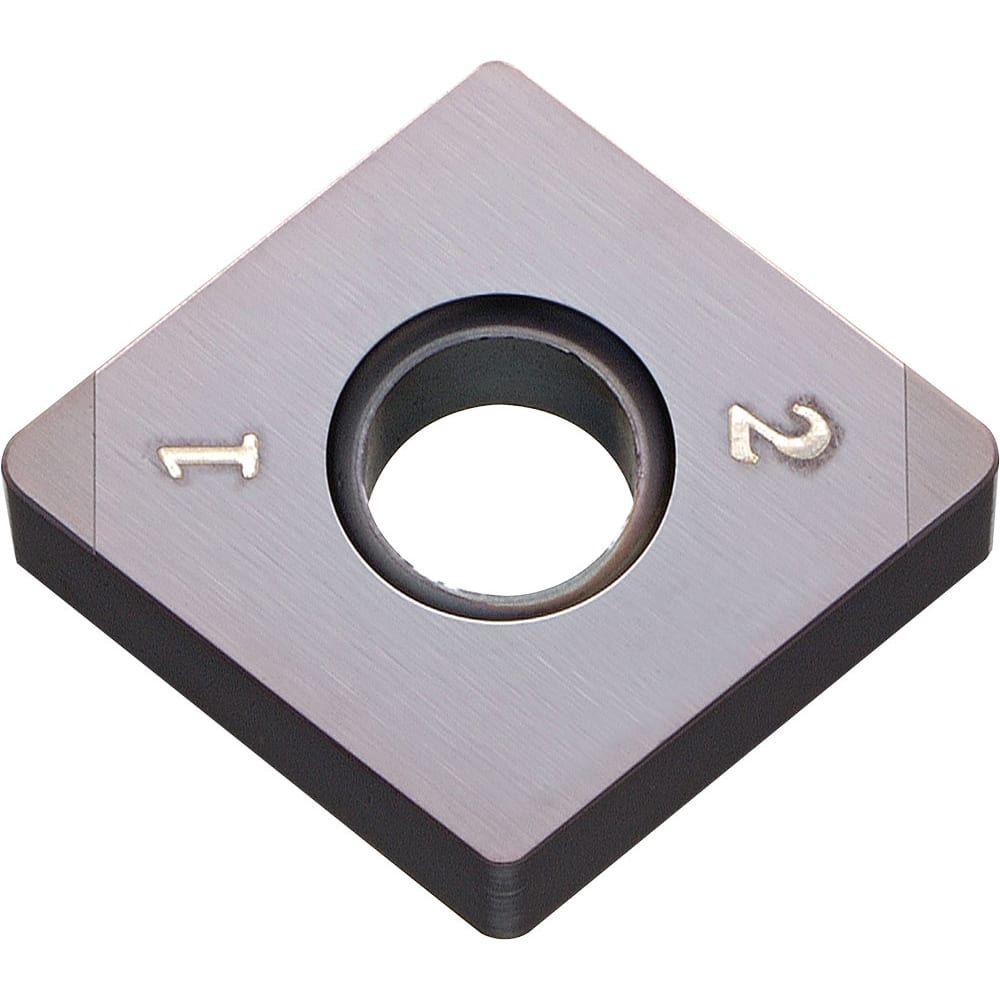

CNGA120404MEW KBN510 CBN Turning Insert Uncoated, Neutral, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, 80° Diamond, Series KBN
Item #: 28469625
Brand: Kyocera
Model #: TBV01471
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Manufacturer Grade | KBN510 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | KBN |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | H |
| Manufacturers Catalog Number | CNGA431MEWKBN510 |
| Chip Breaker | A |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
