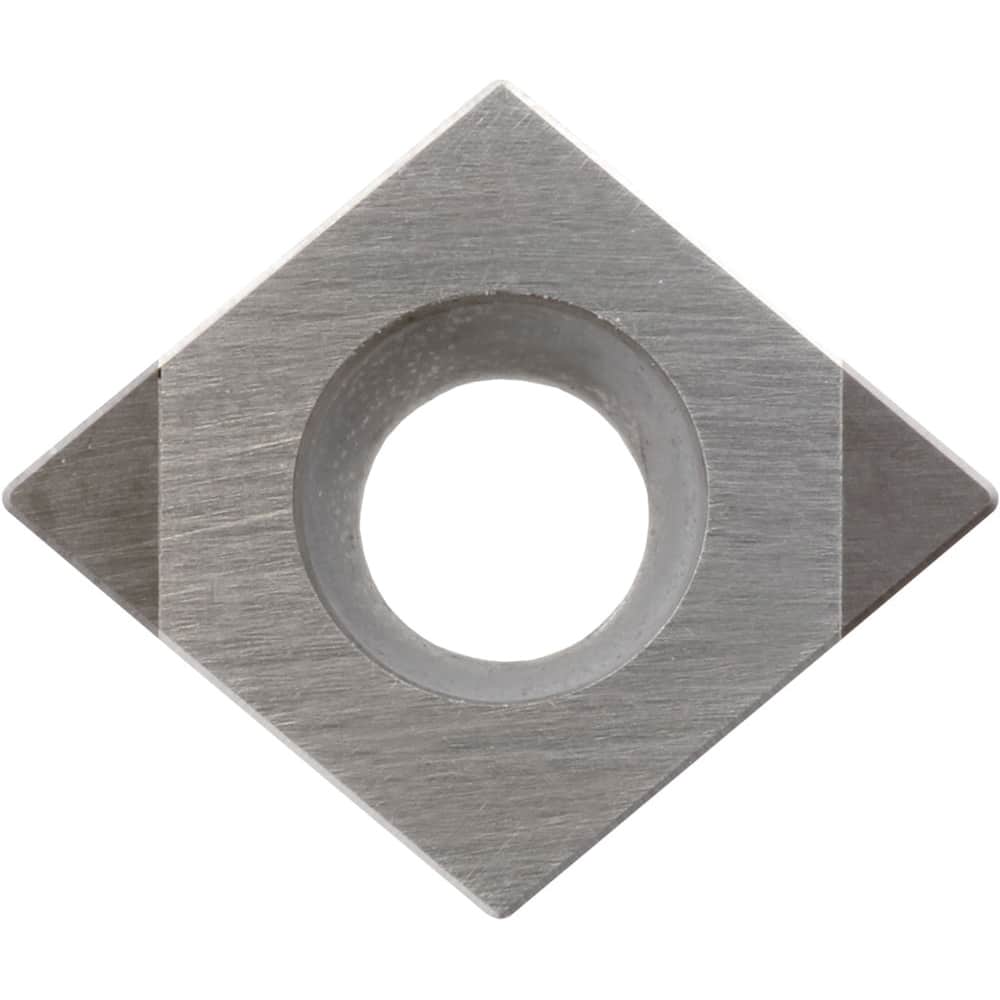

CCMW09T304S01035MET CBN Turning Insert Megacoat Finish, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 5/32″ Thick, 80° Diamond, Series KBN
Item #: 28468916
Brand: Kyocera
Model #: TBZ01205
Product Specifications
| Insert Style | CCMW |
| Insert Shape Code | C |
| Insert Size Code | 3251 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | KBN25M |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | KBN |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | H |
| Manufacturers Catalog Number | CCMW3251S00435METKBN25M |
| Chip Breaker | W |
| Multi-Use Tool | Yes |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
