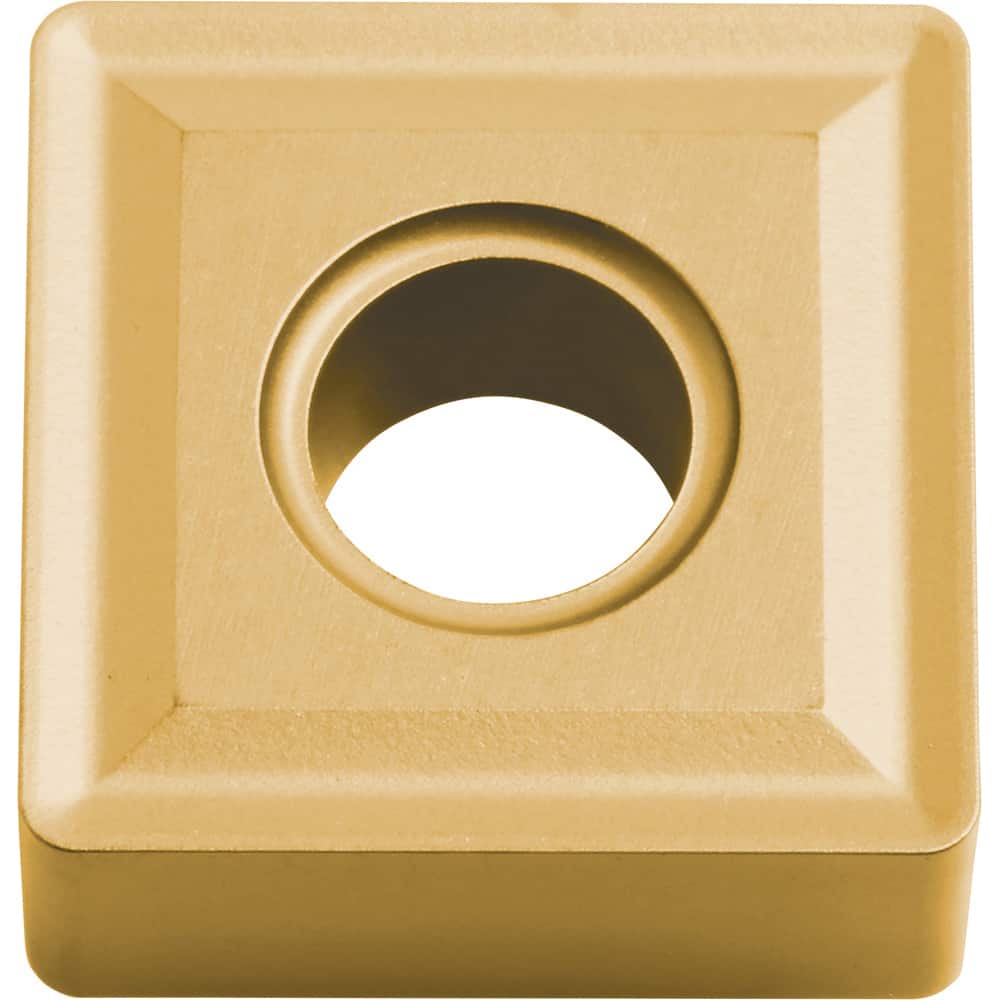

SNMG 090304 CA5525 Carbide Turning Insert TiCl2O3/TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1252″ Thick, 90° Square, Series CA55
Item #: 28468718
Brand: Kyocera
Model #: TJR05070
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 321 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | CA5525 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | CA55 |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | SNMG321CA5525 |
| Chip Breaker | G |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; TiN |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
