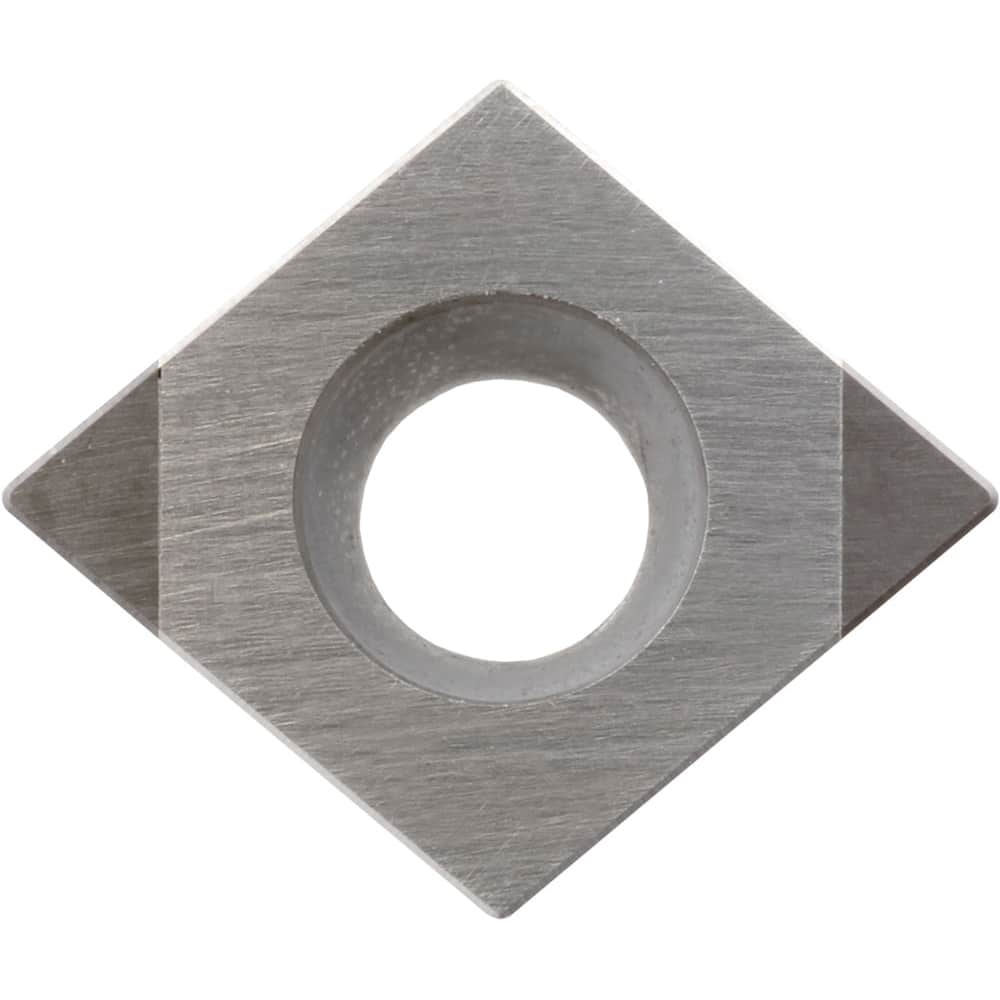

CCMW060204T00815ME CBN Turning Insert Uncoated, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 0.0937″ Thick, 80° Diamond, Series KBN
Item #: 28461135
Brand: Kyocera
Model #: TFB01192
Product Specifications
| Insert Style | CCMW |
| Insert Shape Code | C |
| Insert Size Code | 2151 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | KBN475 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | KBN |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | K |
| Manufacturers Catalog Number | CCMW2151T00315MEKBN475 |
| Chip Breaker | W |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
