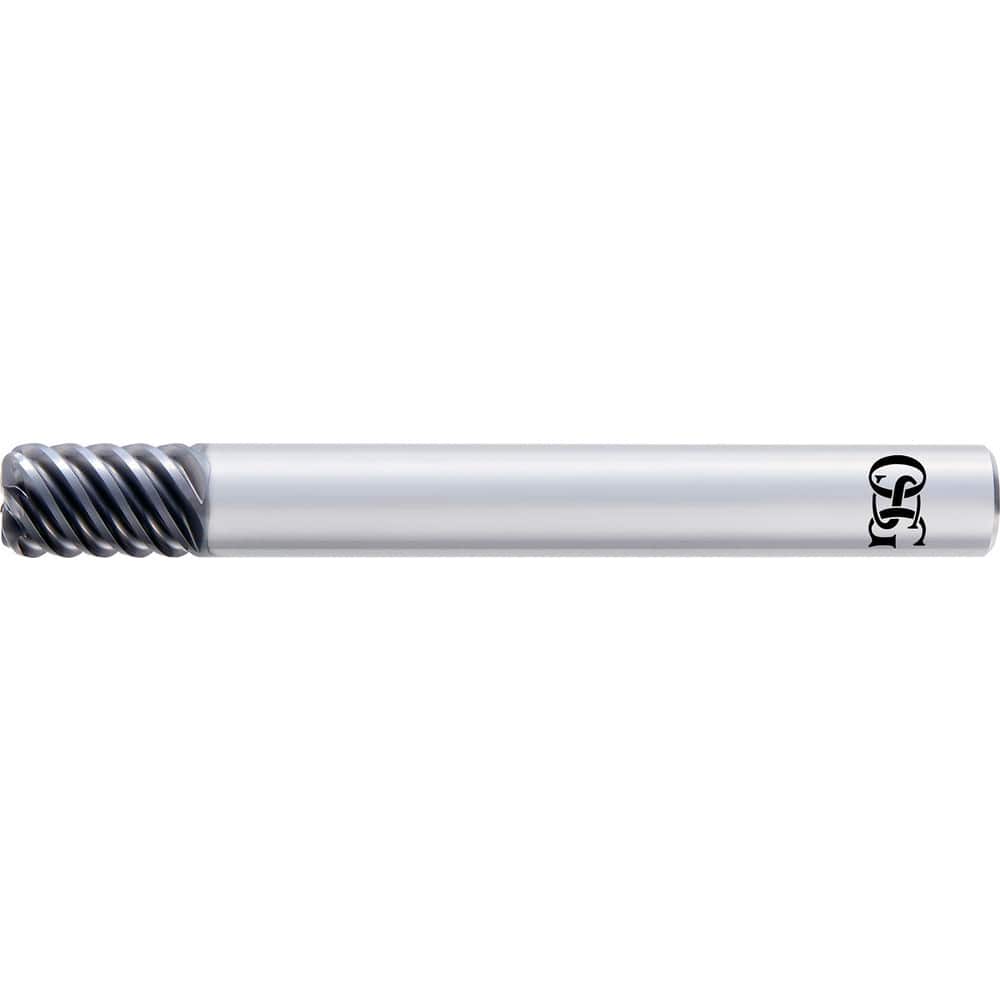

Corner Radius End Mill: 0.6299″ Dia, 1″ Radius, 8 Flutes, Solid Carbide Helix, DUROREY Coated, Centercutting, Series 4770
Item #: 26308874
Brand: OSG
Model #: 3183226
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Length of Cut (mm) | 24.00 |
| Number Of Flutes | 8 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| Length Type | Stub |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Overall Length (mm) | 105.00 |
| Minimum Helix Angle | 60.00 |
| Maximum Helix Angle | 60.00 |
| Cutting Direction | Right Hand |
| Series | 4770 |
| Coating/Finish | DUROREY |
