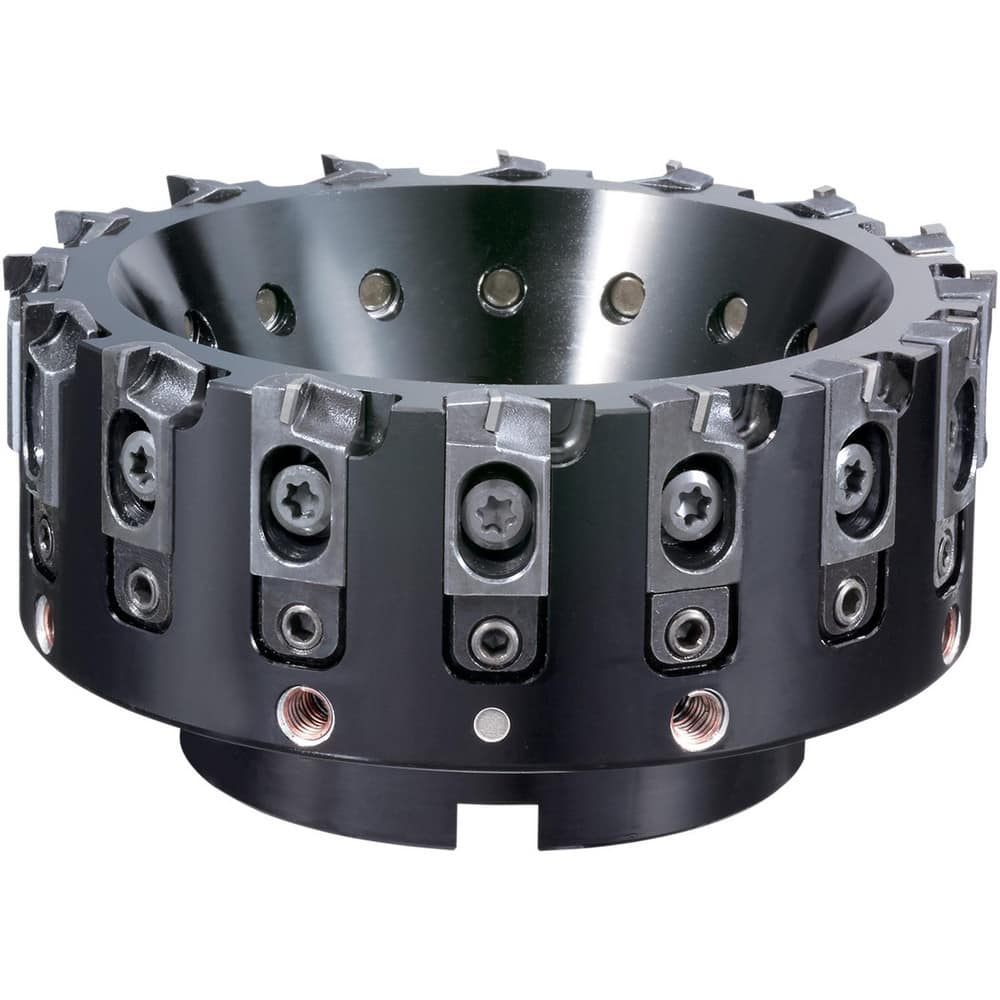

Indexable Square-Shoulder Face Mill: PFAL04R125M25.4-16, 25.4000″ Arbor Hole Dia, Uses 16, 1204 & 1206 Inserts, Through Coolant, Series 78036
Item #: 26307843
Brand: OSG
Model #: 7803619
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 25.4000 |
| Compatible Insert Size Code | 1206; 1204 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | PFAL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 78036 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 16 |
