Turning Insert: RCGW1204M0FNF12, Polycrystalline Diamond Uncoated Finish, Neutral, 0.2362″ Corner Radius, 0.0 ° N/A Round, Series RCGW
Item #: 26300244
Brand: Ceratizit
Model #: 7117910301
Product Specifications
| Insert Style | RCGW |
| Insert Shape Code | R |
| Insert Size Code | 1204 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTDPD20 |

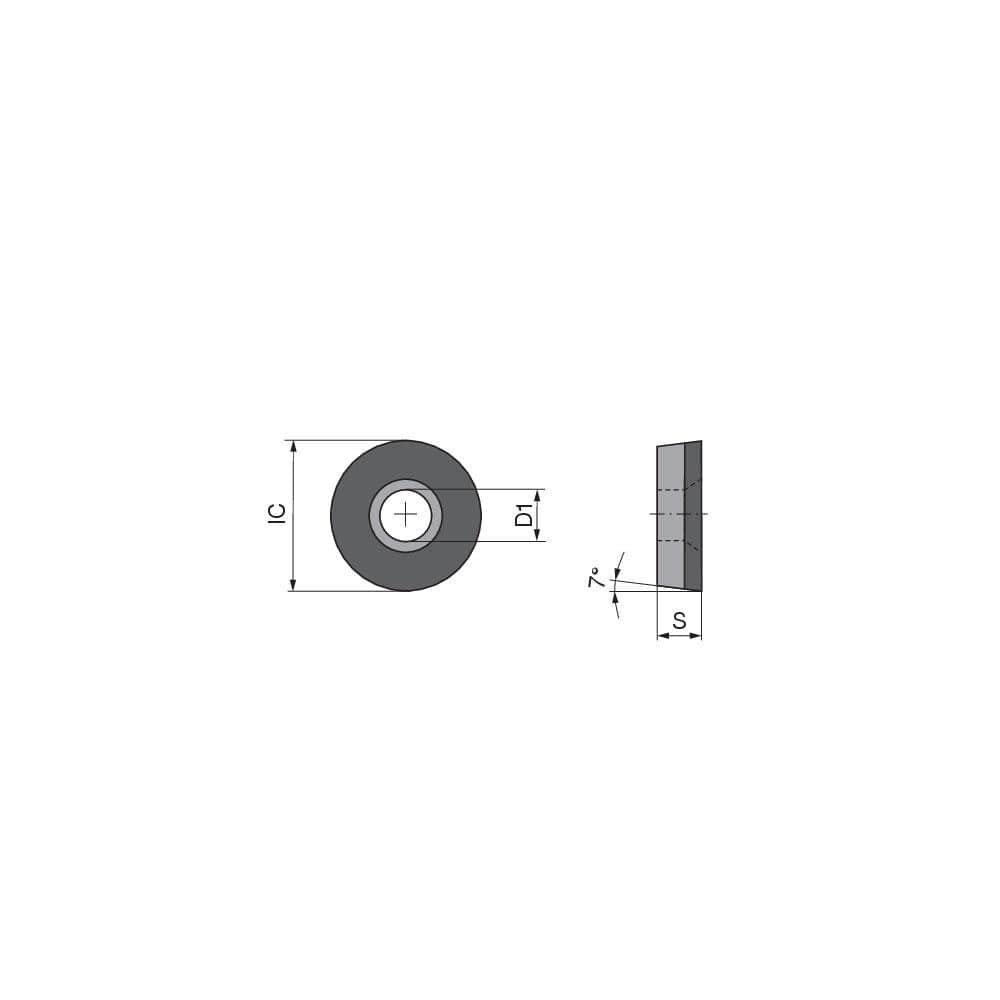

| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Included Angle | 0.0 |
| Relief Angle | 7 |
| Series | RCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Ansi Code | RCGW1204M0FN_F12CTDPD20 |
| Iso Code | RCGW 1204M0FN_F12 CTDPD20 |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
