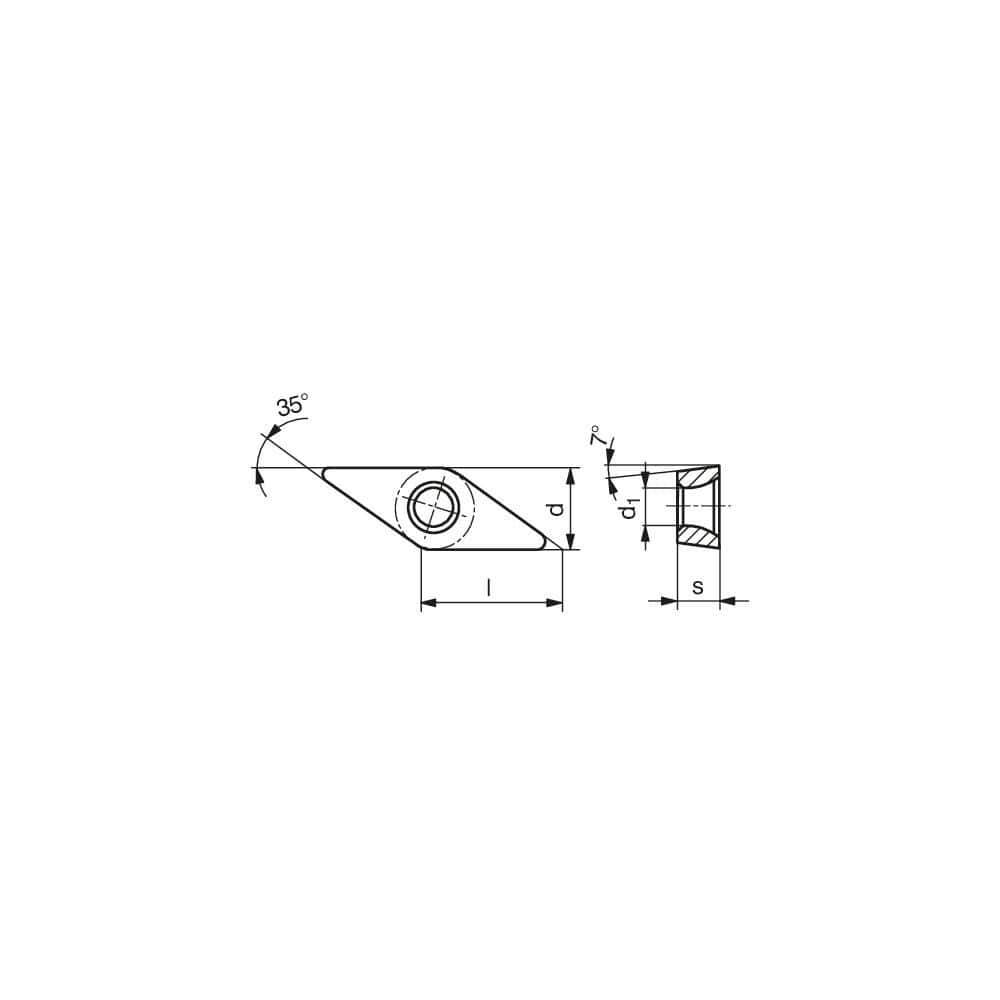

Turning Insert: VCET22.50FNF05 CTPX710, Solid Carbide AlTiN Finish, Neutral, 1/4″ Inscribed Circle, 0.0039″ Corner Radius, 35.0 ° N/A Diamond, Series VCET
Item #: 26299057
Brand: Ceratizit
Model #: 7625511600
Product Specifications
| Insert Style | VCET |
| Insert Shape Code | V |
| Insert Size Code | 220 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPX710 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Maximum Depth of Cut (Decimal Inch) | 0.4370 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCET |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | VCET22.50FNF05CTPX710 |
| Iso Code | VCET 110301FN-F05 CTPX710 |
| Chip Breaker | F05 |
| Coating/Finish | AlTiN |
