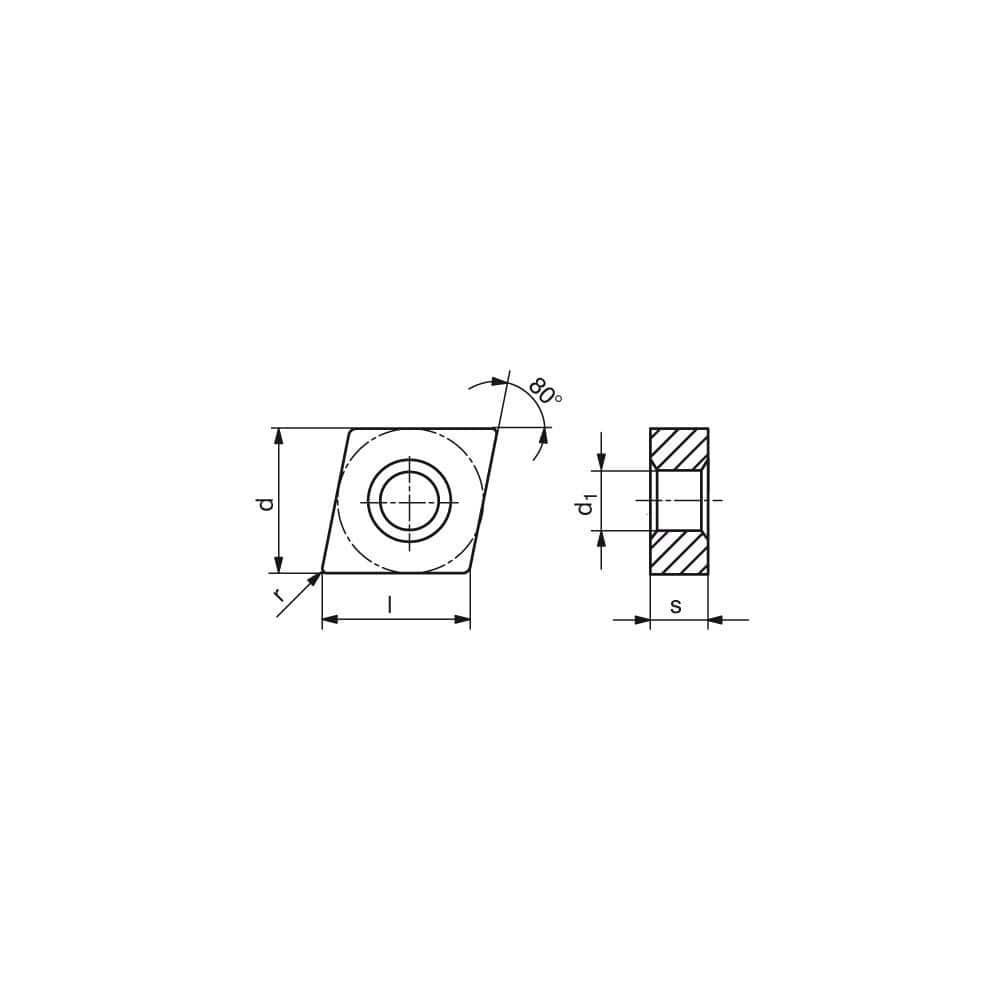

Turning Insert: CNMM866EN-R28 CTCP125, Solid Carbide TiCN & Al2O3 Finish, Neutral, 1″ Inscribed Circle, 0.0945″ Corner Radius, 80.0 ° N/A Diamond, Series CNMM
Item #: 26280420
Brand: Ceratizit
Model #: 7611458400
Product Specifications
| Insert Style | CNMM |
| Insert Shape Code | C |
| Insert Size Code | 866 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCP125 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| Maximum Depth of Cut (Decimal Inch) | 1.0157 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMM |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CNMM866ENR28CTCP125 |
| Iso Code | CNMM 250924EN-R28 CTCP125 |
| Chip Breaker | R28 |
| Coating/Finish | TiCN; Al2O3 |
