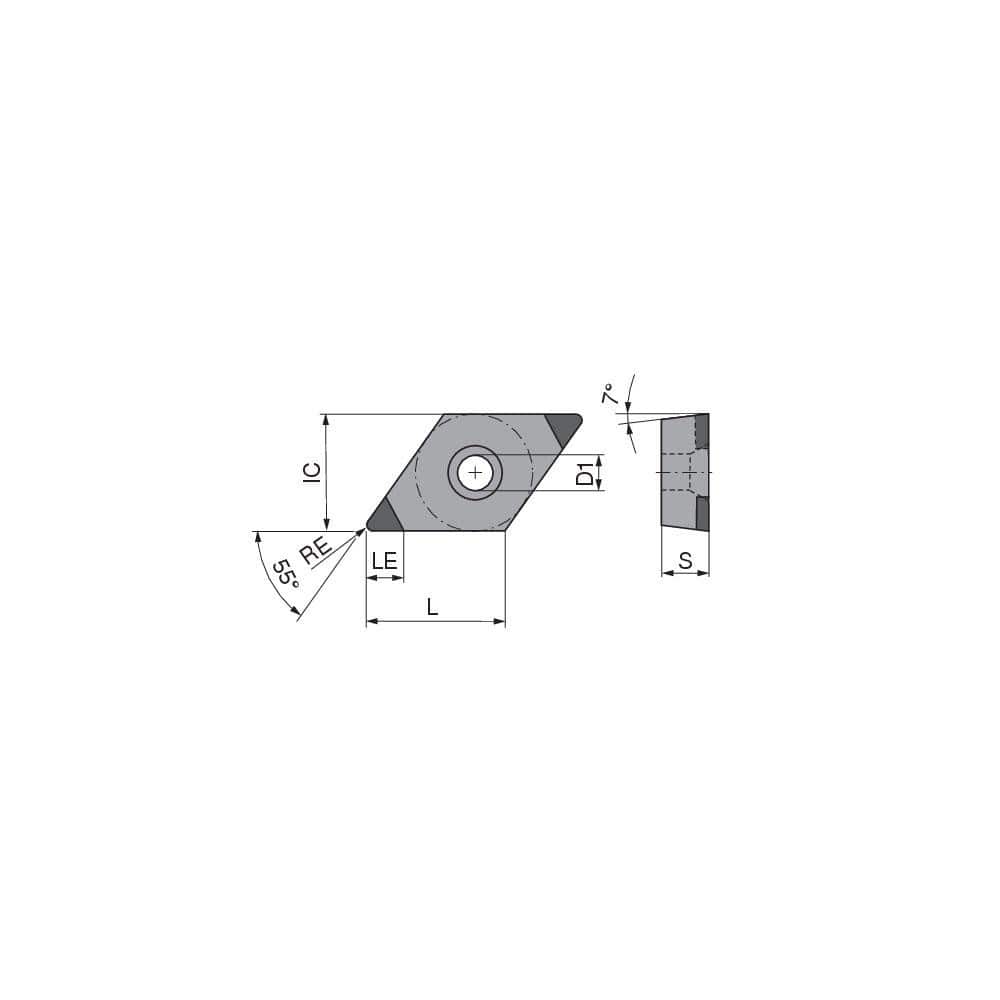

Turning Insert: DCGW3255TN015DB4, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 55.0 ° N/A Diamond, Series DCGW
Item #: 26243238
Brand: Ceratizit
Model #: 71163143
Product Specifications
| Insert Style | DCGW |
| Insert Shape Code | D |
| Insert Size Code | 32.5.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS20C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; K |
| Ansi Code | DCGW32.5.5TN015D_B4CTBS20C |
| Iso Code | DCGW 11T302TN-015D_B4 CTBS20C |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
