Turning Insert: CCGW2155TN014FB3Q, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series CCGW
Item #: 26241190
Brand: Ceratizit
Model #: 71162360
Product Specifications

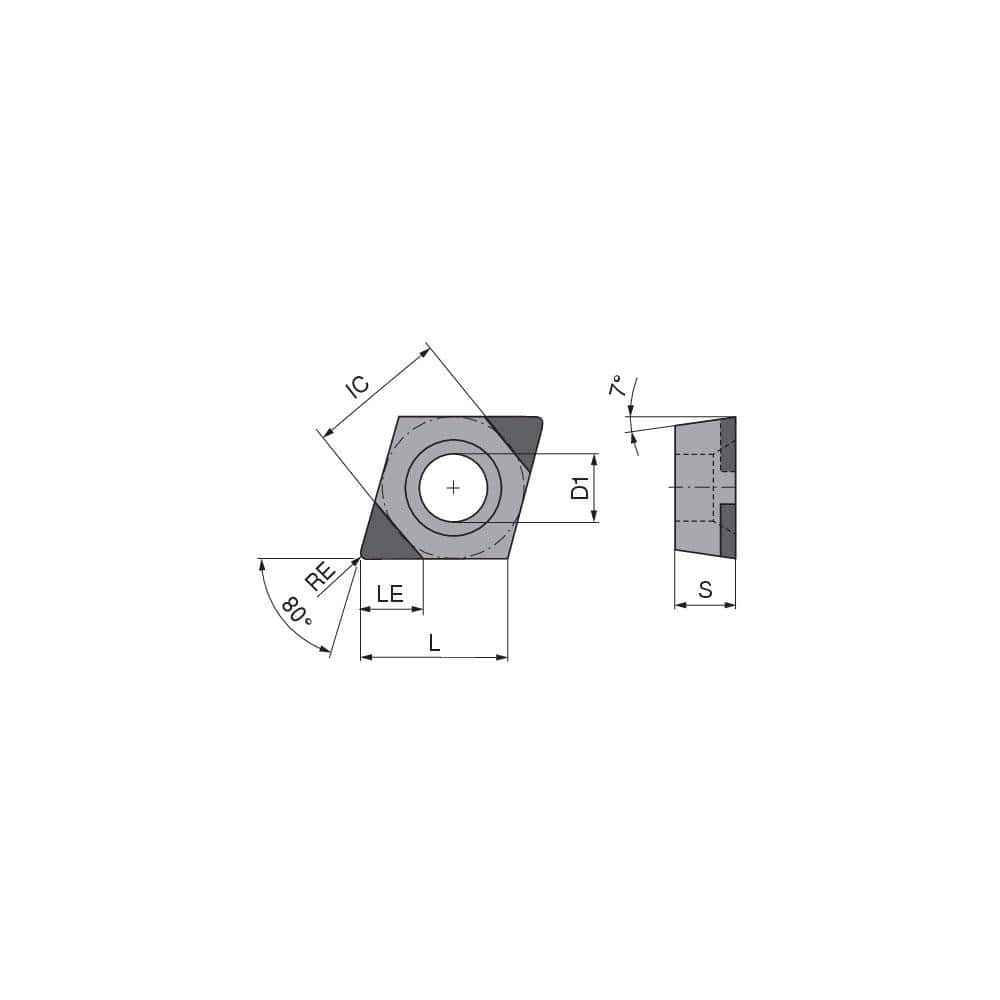

| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 21.5.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH40C |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6535 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | CCGW |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | CCGW21.5.5TN014F_B3QCTBH40C |
| Iso Code | CCGW 060202TN-014F_B3-Q CTBH40C |
| Chip Breaker | Q |
| Coating/Finish | TiN |
