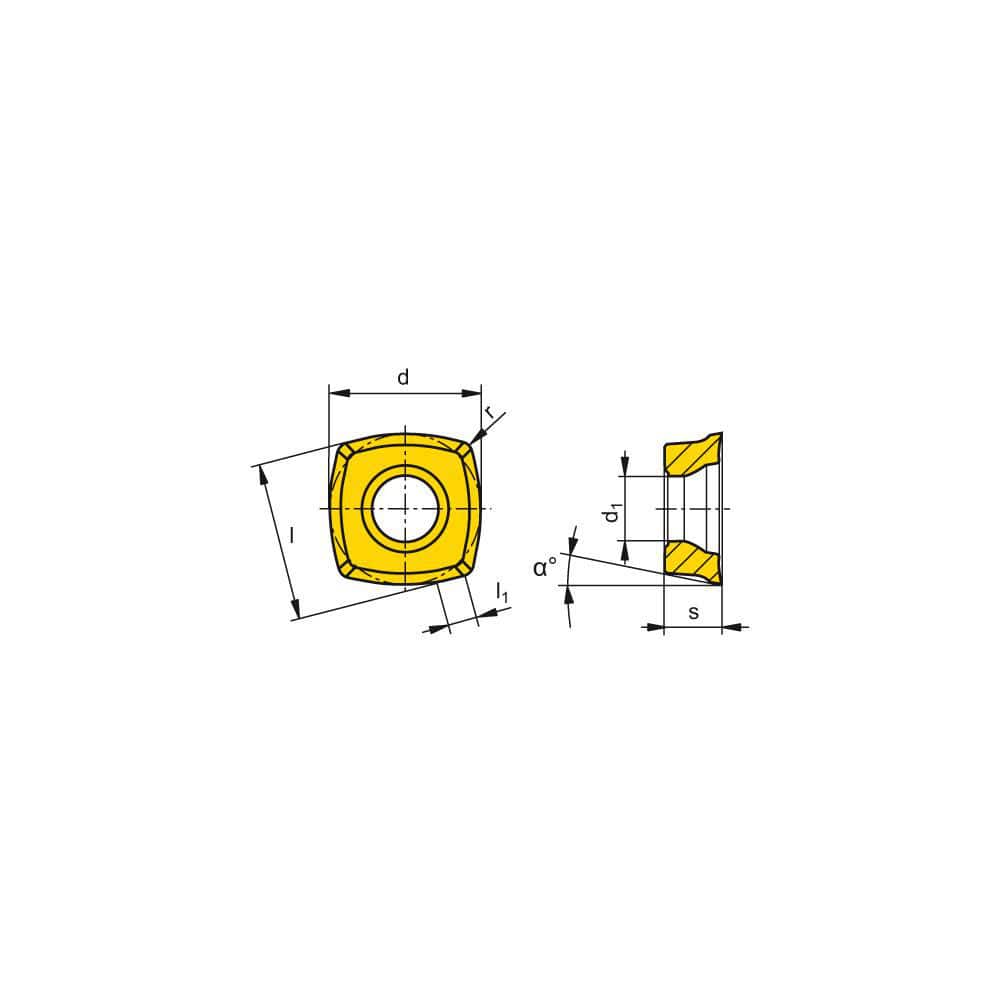

Milling Insert: XOLX 120410SR-M50 CTPP235, CTPP235, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26223024
Brand: Ceratizit
Model #: 51017110
Product Specifications
| Insert Style | XOLX |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPP235 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Relief Angle | 10.00 |
| Series | XOLX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2224 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | XOLX 120410SR-M50 CTPP235 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
