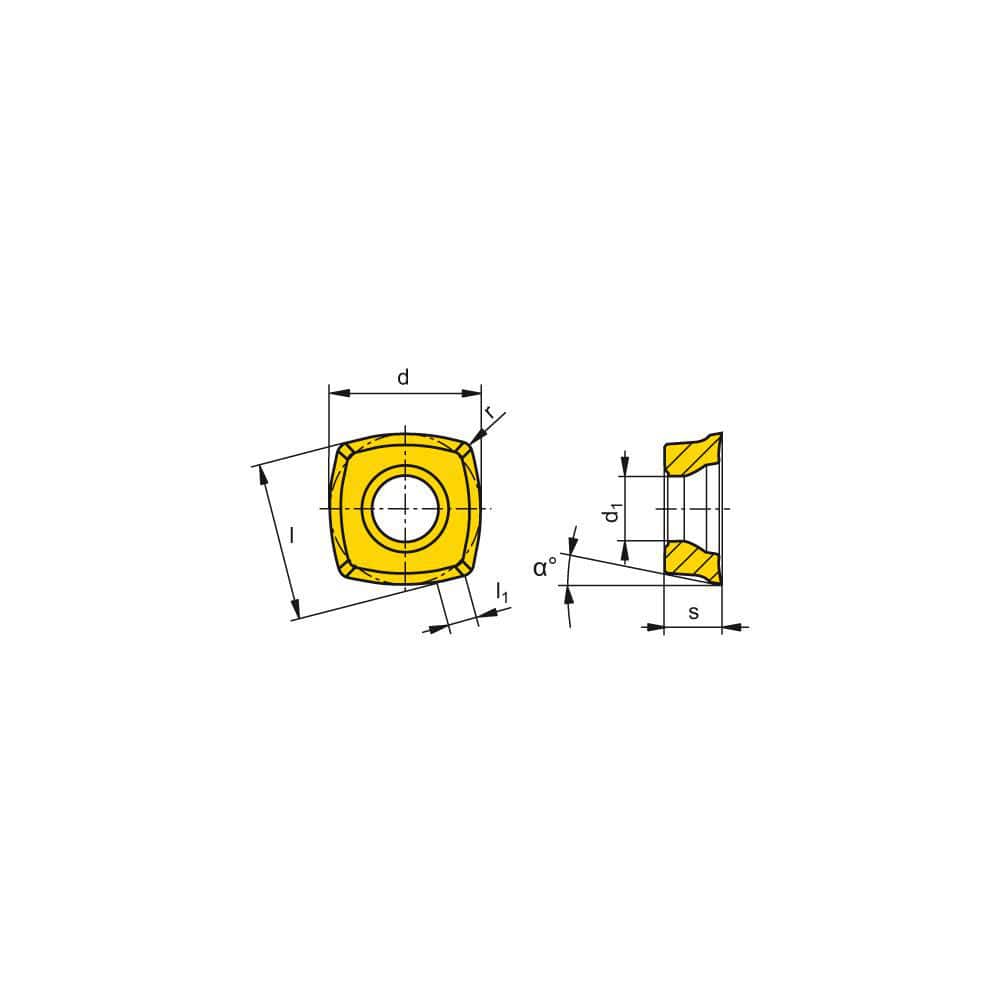

Milling Insert: XDLX 09T308SR-M50 CTPM225, CTPM225, Solid Carbide N/A Finish,
Item #: 26222935
Brand: Ceratizit
Model #: 51016208
Product Specifications
| Insert Style | XDLX |
| Insert Size Code | 09T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM225 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDLX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1669 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3543 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | XDLX 09T308SR-M50 CTPM225 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
