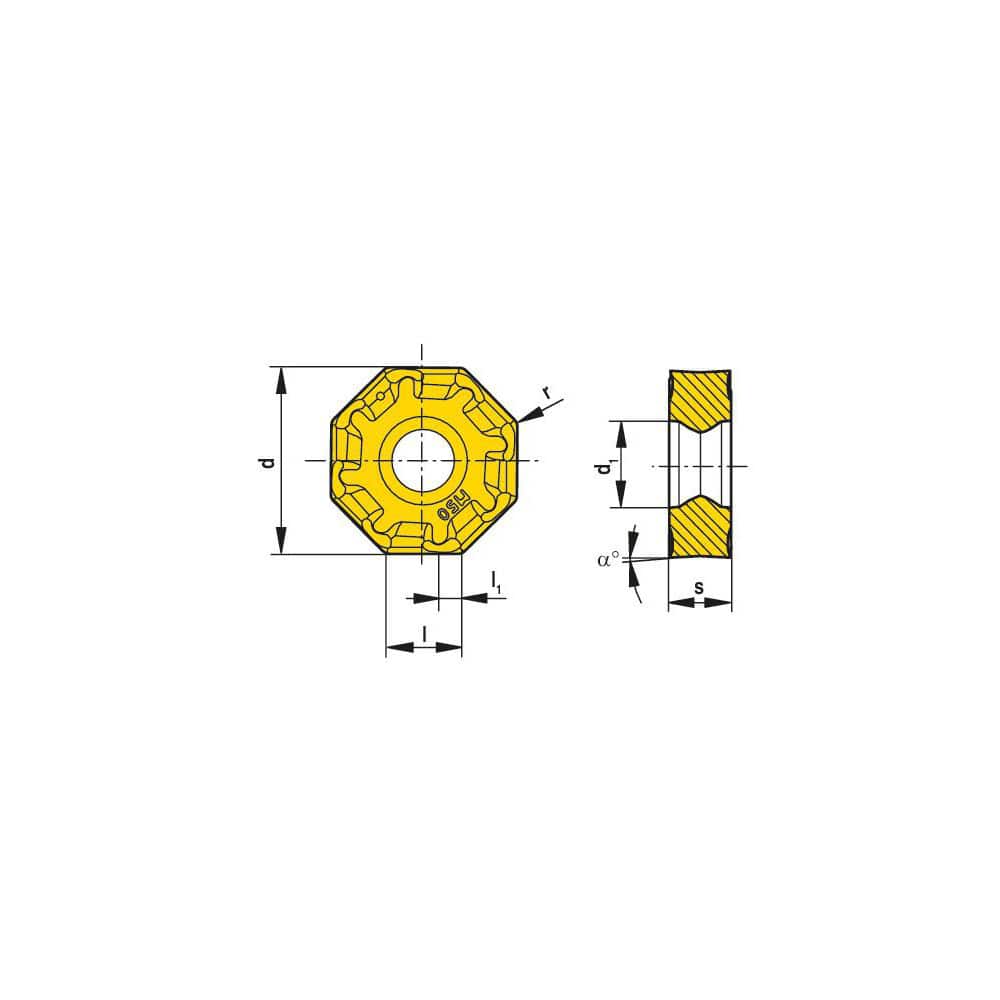

Milling Insert: OAKU 060508ER-F40 CTPM245, CTPM245, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26222620
Brand: Ceratizit
Model #: 51104458
Product Specifications
| Insert Style | OAKU |
| Insert Size Code | 0605 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPM245 |
| Inscribed Circle (Decimal Inch) | 0.6732 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 3.00 |
| Series | OAKU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Maximum Depth of Cut (Decimal Inch) | 0.1004 |
| Number Of Cutting Edges | 16 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Insert Shape | Octagon |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | OAKU 060508ER-F40 CTPM245 |
| Iso Code | OAKU 060508ER-F40 CTPM245 |
| Chip Breaker | F40 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2228 |
