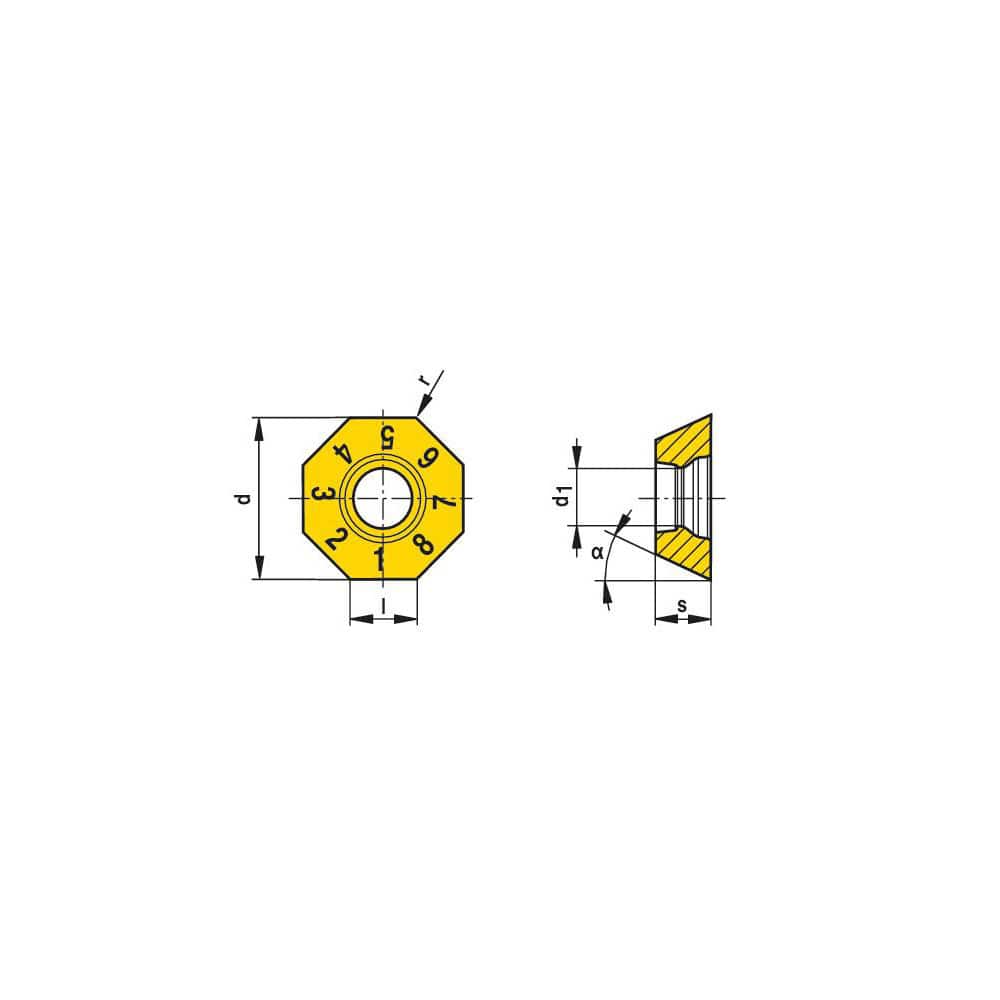

Milling Insert: OFHT 040305SN-F50 CTCP230, CTCP230, Solid Carbide N/A Finish,
Item #: 26222604
Brand: Ceratizit
Model #: 51002005
Product Specifications
| Insert Style | OFHT |
| Insert Size Code | 0403 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCP230 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Insert Hand | Neutral |
| Relief Angle | 25.00 |
| Series | OFHT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1319 |
| Maximum Depth of Cut (Decimal Inch) | 0.0323 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1551 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | OFHT 040305SN-F50 CTCP230 |
| Iso Code | OFHT 040305SN-F50 CTCP230 |
| Chip Breaker | F50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
