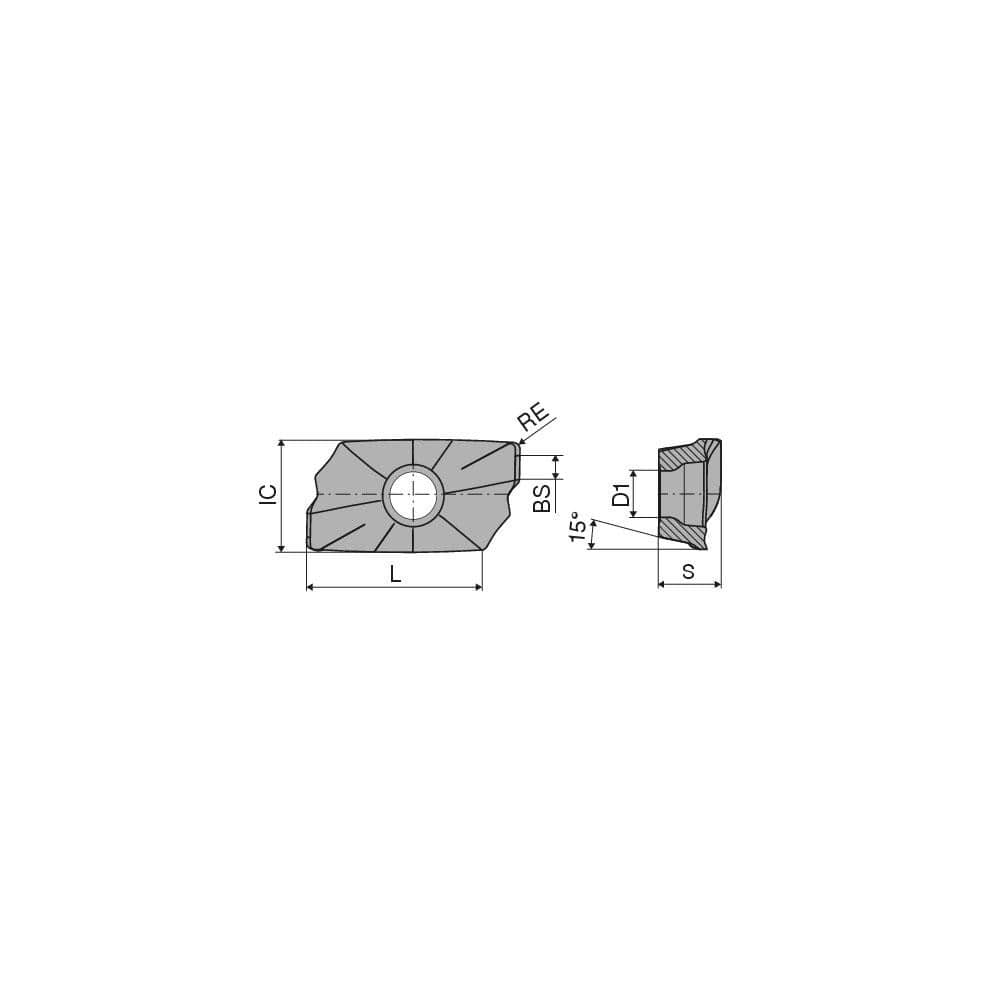

Milling Insert: XDKT 150512SR-M50 CTPM240, CTPM240, Solid Carbide N/A Finish,
Item #: 26222455
Brand: Ceratizit
Model #: 51038412
Product Specifications
| Insert Style | XDKT |
| Insert Size Code | 1505 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM240 |
| Inscribed Circle (Decimal Inch) | 0.3661 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDKT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3997 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5827 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | XDKT 150512SR-M50 CTPM240 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
