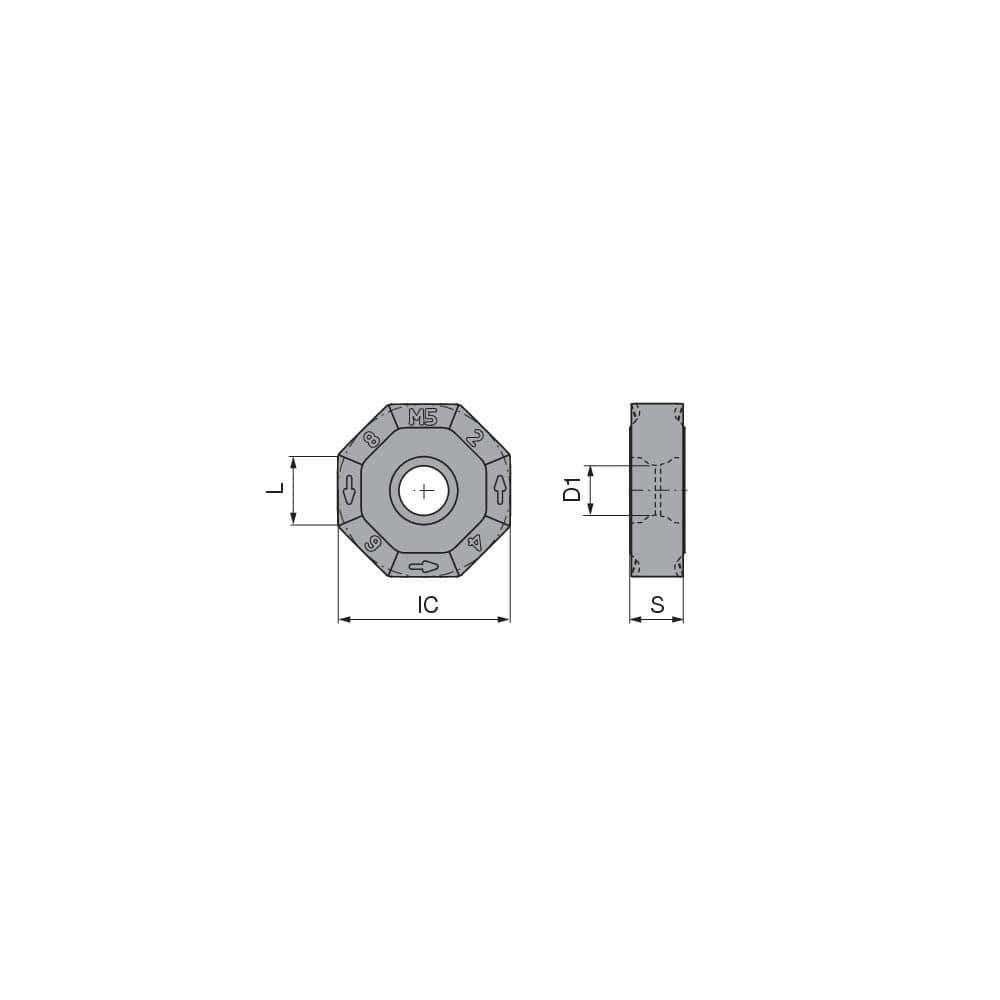

Milling Insert: ONEX 0806ANEN-M5 CTPM226, CTPM226, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26222216
Brand: Ceratizit
Model #: 5114412503
Product Specifications
| Insert Style | ONEX |
| Insert Size Code | 0806 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPM226 |
| Inscribed Circle (Decimal Inch) | 0.7677 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | ONEX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Maximum Depth of Cut (Decimal Inch) | 0.0650 |
| Number Of Cutting Edges | 16 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3189 |
| Insert Shape | Octagon |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | ONEX 0806ANEN-M5 CTPM226 |
| Chip Breaker | M5 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2370 |
