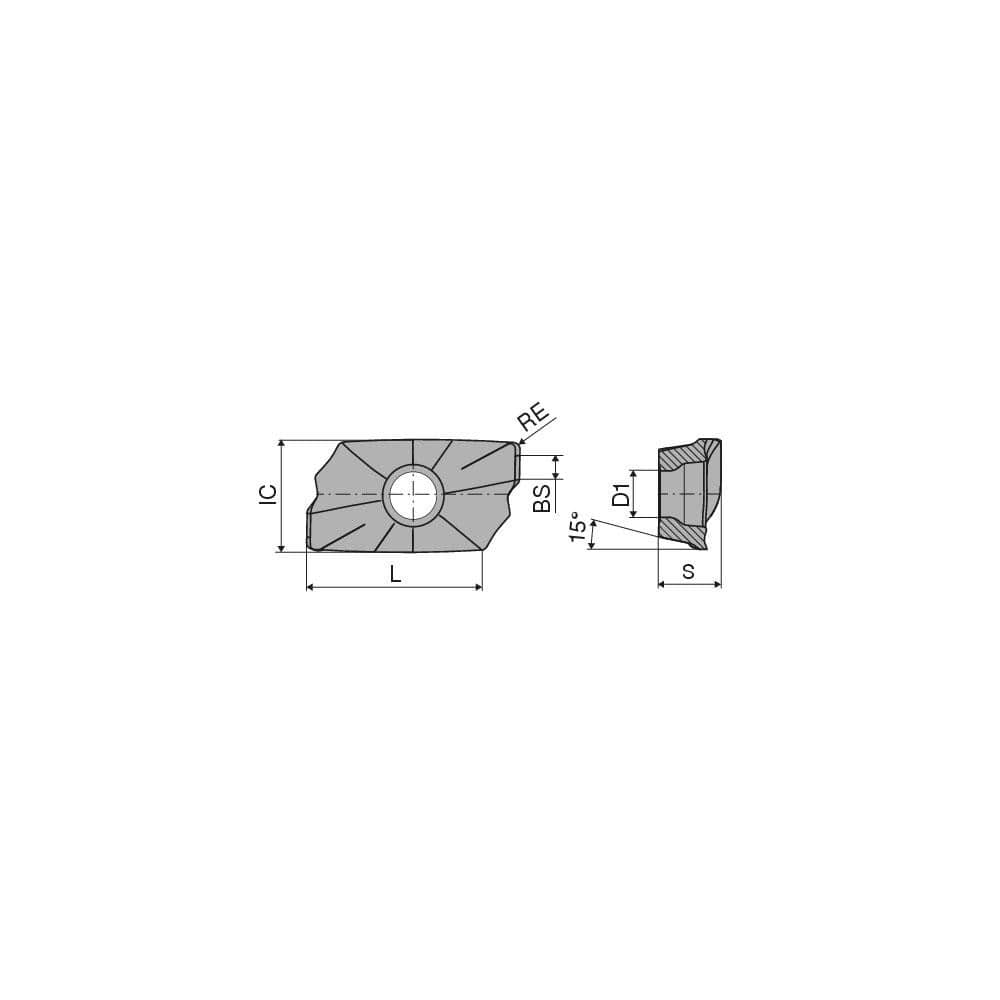

Milling Insert: XDKT 070308ER-F40 CTPM245, CTPM245, Solid Carbide N/A Finish,
Item #: 26221960
Brand: Ceratizit
Model #: 51112458
Product Specifications
| Insert Style | XDKT |
| Insert Size Code | 0703 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM245 |
| Inscribed Circle (Decimal Inch) | 0.1929 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDKT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (Decimal Inch) | 0.2107 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3071 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | XDKT 070308ER-F40 CTPM245 |
| Iso Code | XDKT 070308ER-F40 CTPM245 |
| Chip Breaker | F40 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
