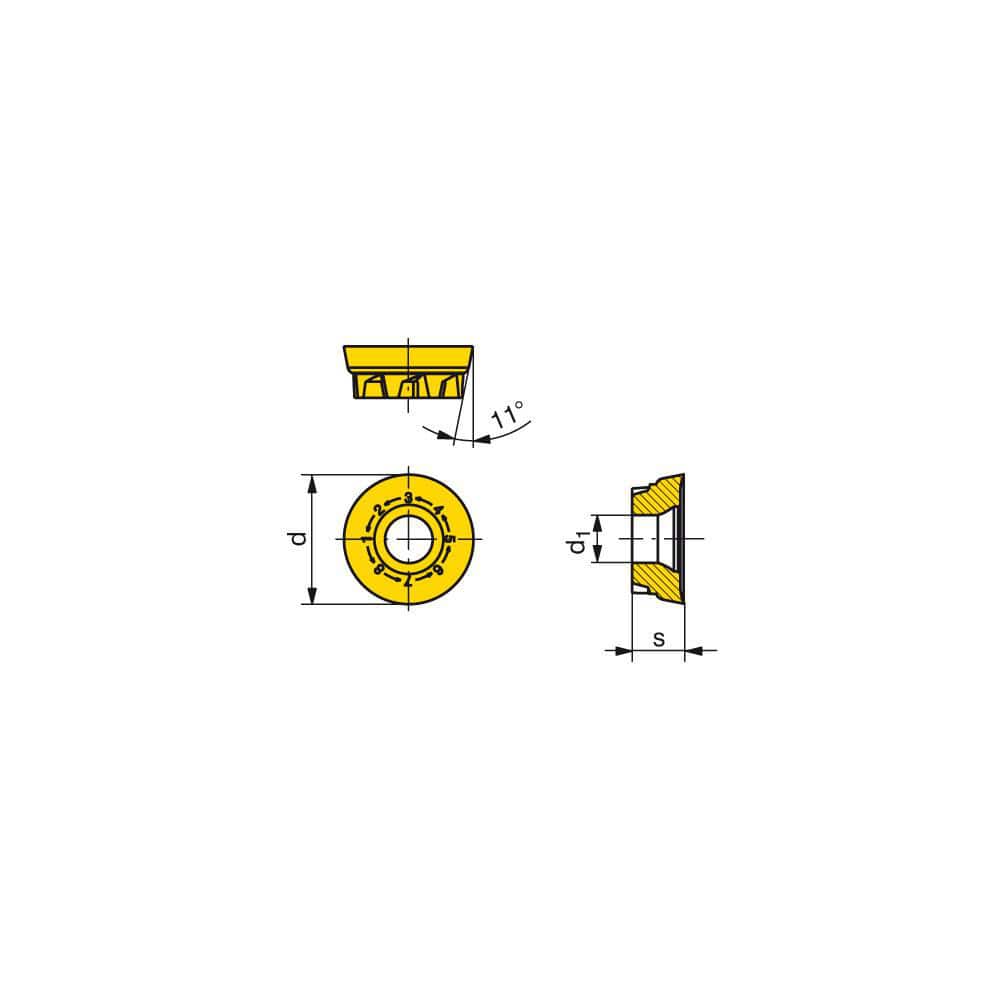

Milling Insert: RPHX 1605M8SN CTCP230, CTCP230, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26221903
Brand: Ceratizit
Model #: 51052030
Product Specifications
| Insert Style | RPHX |
| Insert Size Code | 1605 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTCP230 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | RPHX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3150 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | RPHX 1605M8SN CTCP230 |
| Chip Breaker | SN |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
