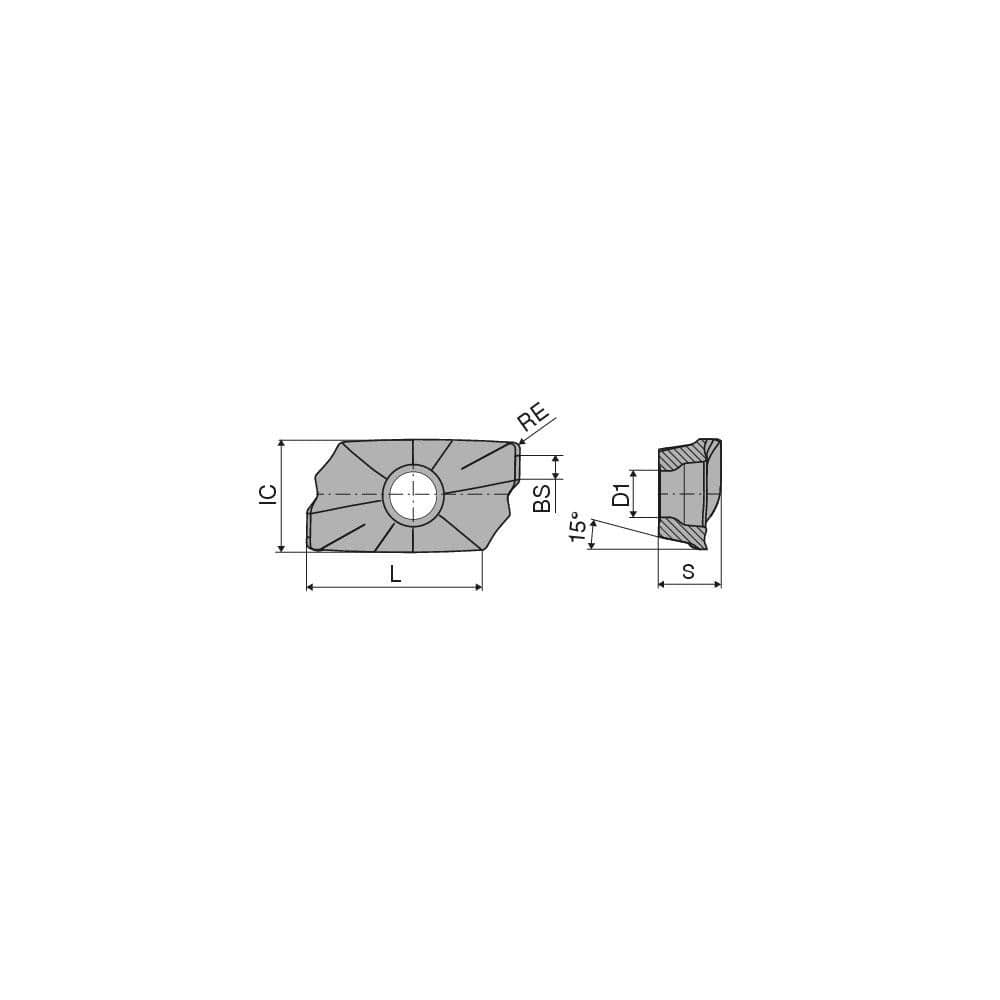

Milling Insert: XDKT 200708ER-F40 CTCS245, CTCS245, Solid Carbide N/A Finish,
Item #: 26221127
Brand: Ceratizit
Model #: 5112755800
Product Specifications
| Insert Style | XDKT |
| Insert Size Code | 2007 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCS245 |
| Inscribed Circle (Decimal Inch) | 0.4921 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.4942 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.7402 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | XDKT 200708ER-F40 CTCS245 |
| Iso Code | XDKT 200708ER-F40 CTCS245 |
| Chip Breaker | F40 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2728 |
