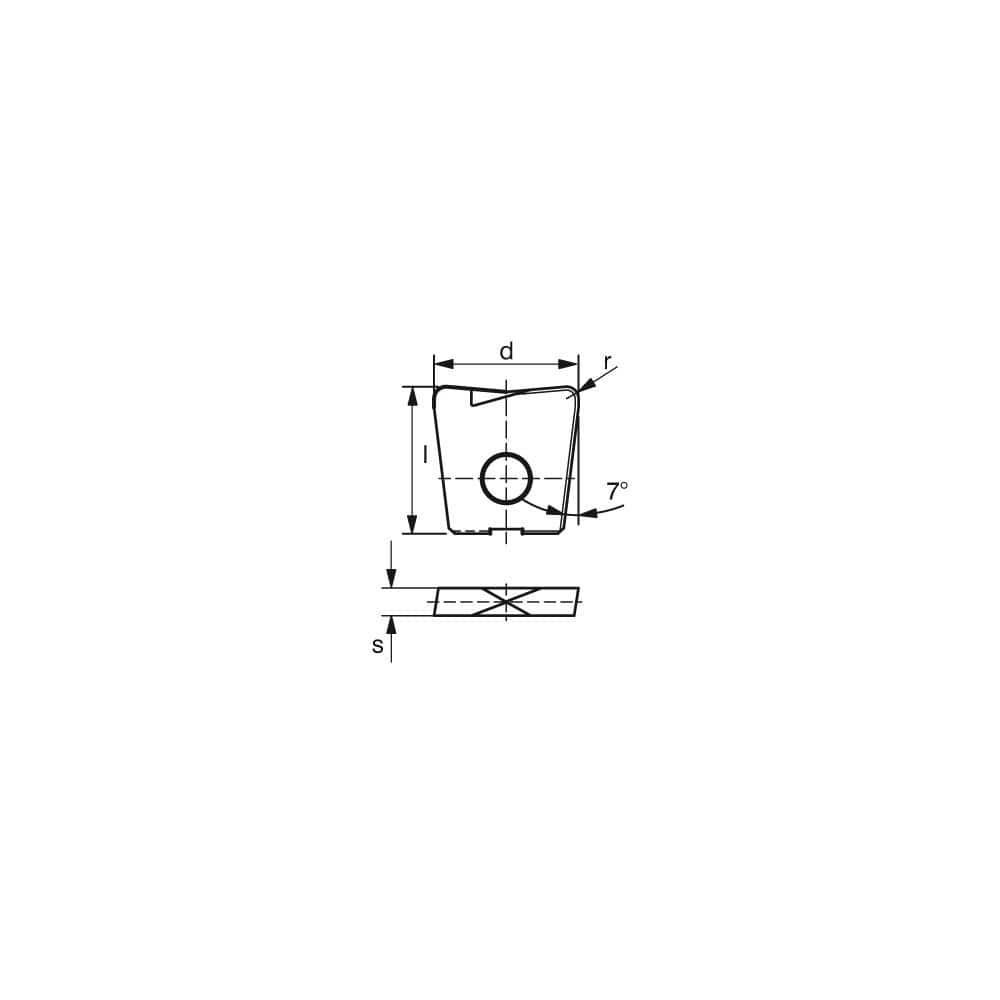

Milling Insert: XOHX 082006-FM2 CTPP216, CTPP216, Solid Carbide N/A Finish,
Item #: 26221119
Brand: Ceratizit
Model #: 5616571000
Product Specifications
| Insert Style | XOHX |
| Insert Size Code | 0820 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPP216 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Series | XOHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.0393 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3740 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Super-Alloys & Titanium |
| Secondary Workpiece Material Code | S; M; N; O |
| Iso Code | XOHX 082006-FM2 CTPP216 |
| Chip Breaker | FM2 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0787 |
