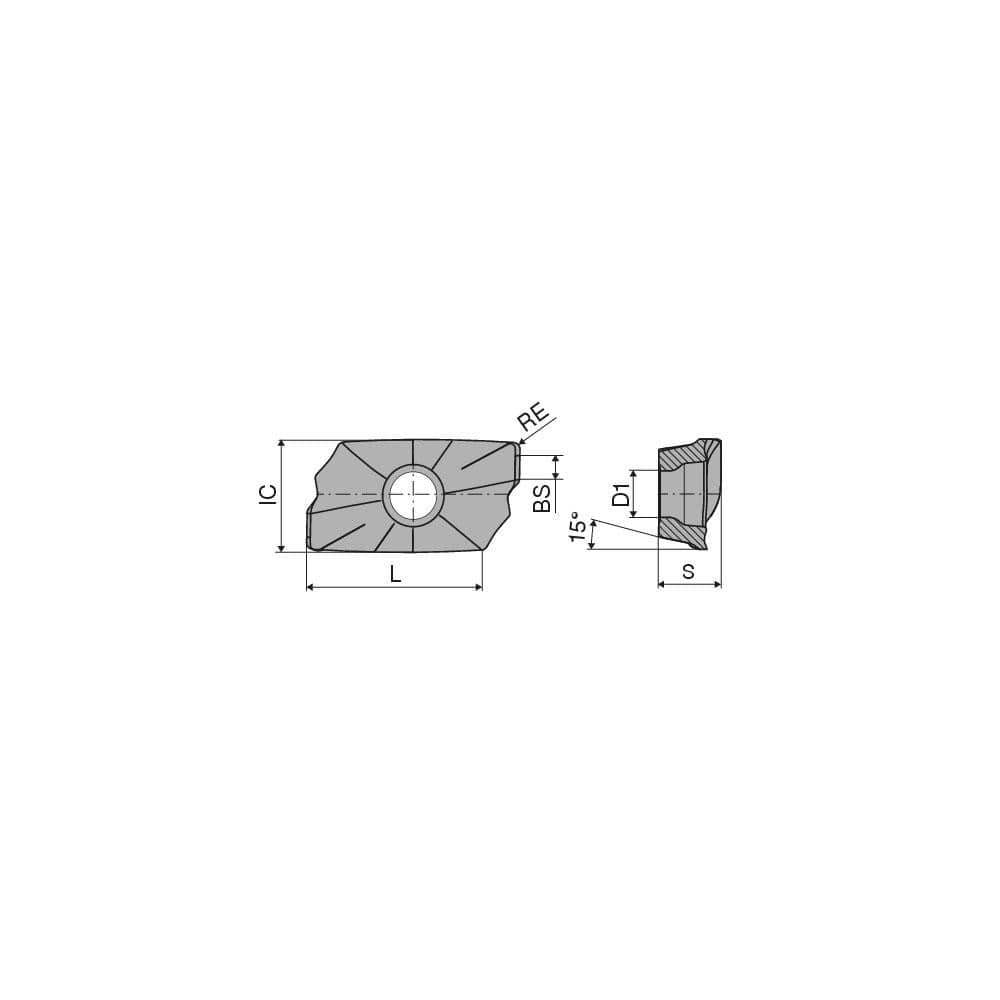

Milling Insert: XDKT 150508SR-M50 CTCK215, CTCK215, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26221044
Brand: Ceratizit
Model #: 51038508
Product Specifications
| Insert Style | XDKT |
| Insert Size Code | 1505 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTCK215 |
| Inscribed Circle (Decimal Inch) | 0.6724 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDKT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (Decimal Inch) | 0.2464 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5826 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | XDKT 150508SR-M50 CTCK215 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
