Milling Insert: SOHU 1204ABSR-R50 CTPK220, CTPK220, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26220731
Brand: Ceratizit
Model #: 5113962000

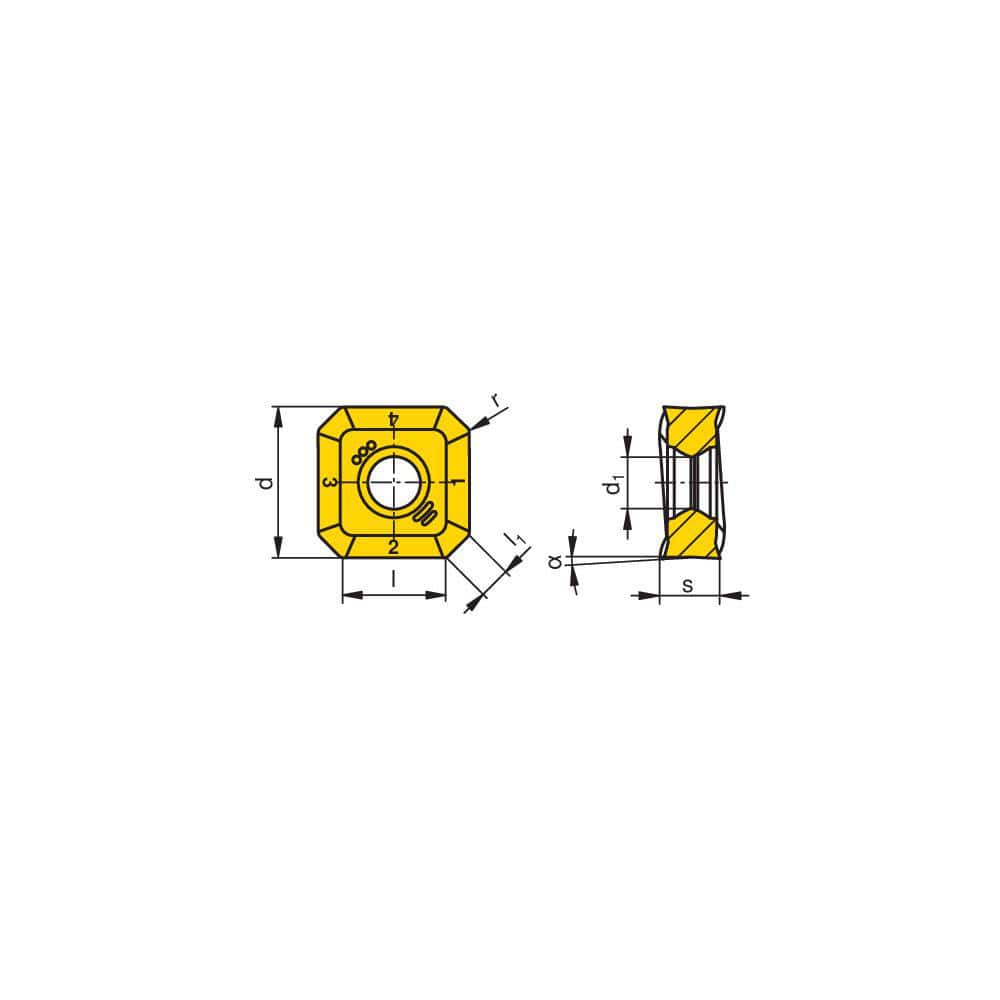

Product Specifications
| Insert Style | SOHU |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPK220 |
| Inscribed Circle (Decimal Inch) | 0.5260 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 7.40 |
| Series | SOHU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.0835 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3465 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SOHU 1204ABSR-R50 CTPK220 |
| Iso Code | SOHU 1204ABSR-R50 CTPK220 |
| Chip Breaker | R50 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
