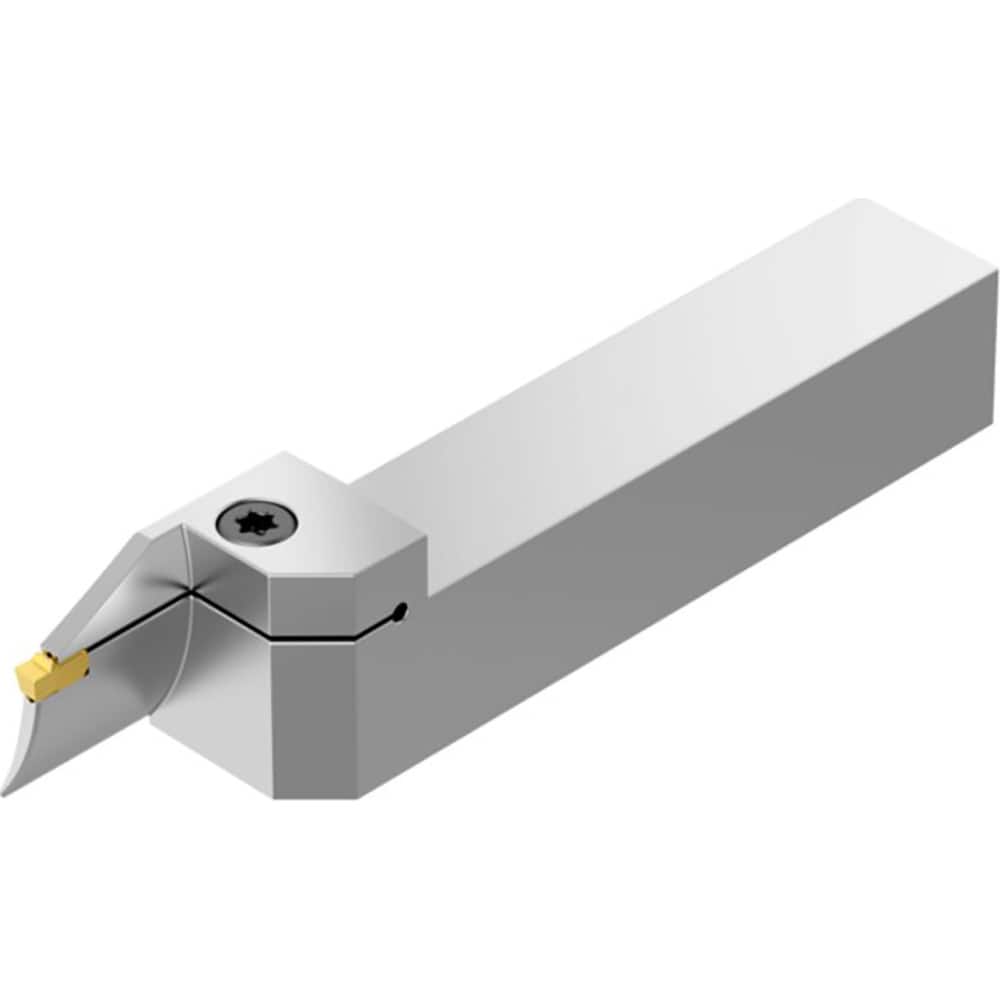

Indexable Grooving/Cut-Off Toolholders; Internal or External: External; Cutting Direction: Left Hand; Maximum Depth of Cut (mm): 12.00; Hand of Holder: Left Hand; Minimum Groove Width (mm): 3.00; Toolholder Style: EVSB; Insert Compatibility: EG0300M03P02;
Item #: 26179978
Brand: Kennametal
Model #: 6080494
Product Specifications
| Internal or External | External |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Hand of Holder | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | EVSB |
| Insert Compatibility | EG0300M03P02 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 119.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | Beyond Evolution |
| Overall Length (mm) | 152.40 |
| Head Length (mm) | 33.00 |
| Manufacturers Catalog Number | EVSBL160312250350C |
| Complete Insert Compatibility | EG0300M03P02 |
| Insert Seat Size | 3.0 |
| Number of Inserts Included in Order | 26 |
| Coolant Through | Yes |
