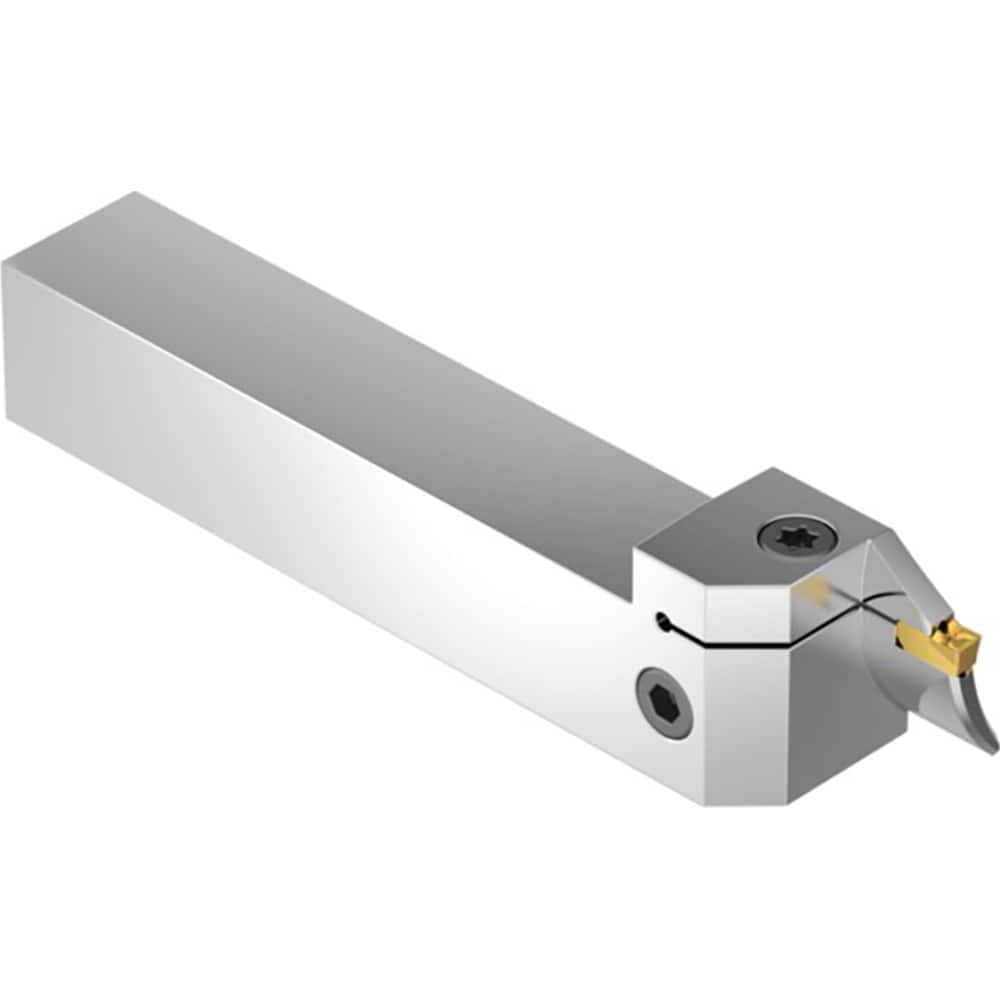

Indexable Grooving/Cut-Off Toolholders; Internal or External: External; Cutting Direction: Right Hand; Maximum Depth of Cut (mm): 26.00; Hand of Holder: Right Hand; Minimum Groove Width (mm): 5.00; Toolholder Style: EVSB; Insert Compatibility: EG0500M05P0
Item #: 26177964
Brand: Kennametal
Model #: 6124224
Product Specifications
| Internal or External | External |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Hand of Holder | Right Hand |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | EVSB |
| Insert Compatibility | EG0500M05P04 |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 103.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Beyond Evolution |
| Overall Length (mm) | 150.00 |
| Head Length (mm) | 47.00 |
| Manufacturers Catalog Number | EVSBR2525M0526180250C |
| Complete Insert Compatibility | EG0500M05P04 |
| Insert Seat Size | 5.0 |
| Number of Inserts Included in Order | 6 |
| Coolant Through | Yes |
