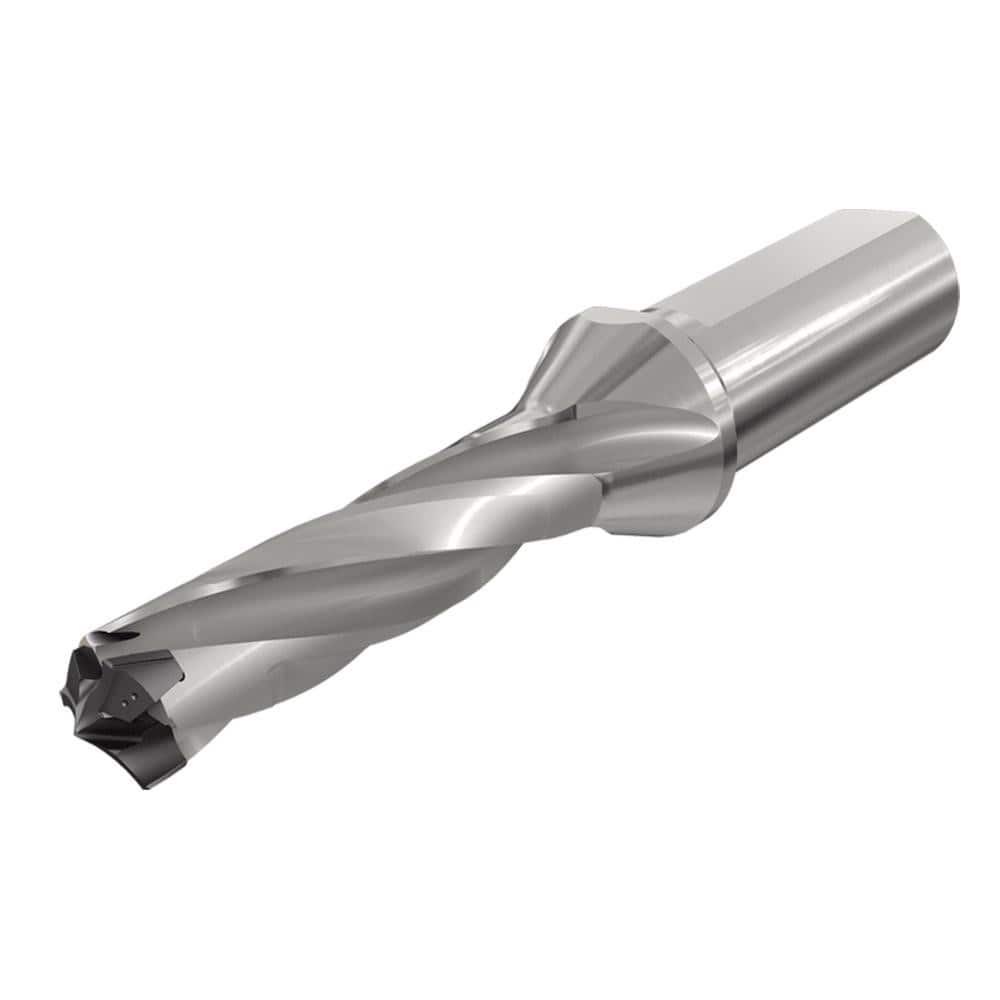

Replaceable Tip Drill: 0.827 to 0.862'' Drill Dia, 2.661″ Max Depth, 1'' Flatted Shank Uses H3P Inserts, 4.18″ OAL, Through Coolant
Item #: 26144956
Brand: Iscar
Model #: 3346977
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Diameter (Decimal Inch) | 0.8620 |
| Maximum Drill Depth (Decimal Inch) | 2.6610 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 21 |
| Overall Length (Decimal Inch) | 4.1800 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 2.6610 |
| Body Length (Decimal Inch) | 4.1880 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
