Turning Insert: RCMM1204M0-61 TH10, Solid Carbide Uncoated Finish, Neutral, 0.2360″ Corner Radius, 0.0 ° N/A Round, Series RCMM
Item #: 26109926
Brand: Tungaloy
Model #: 6805849

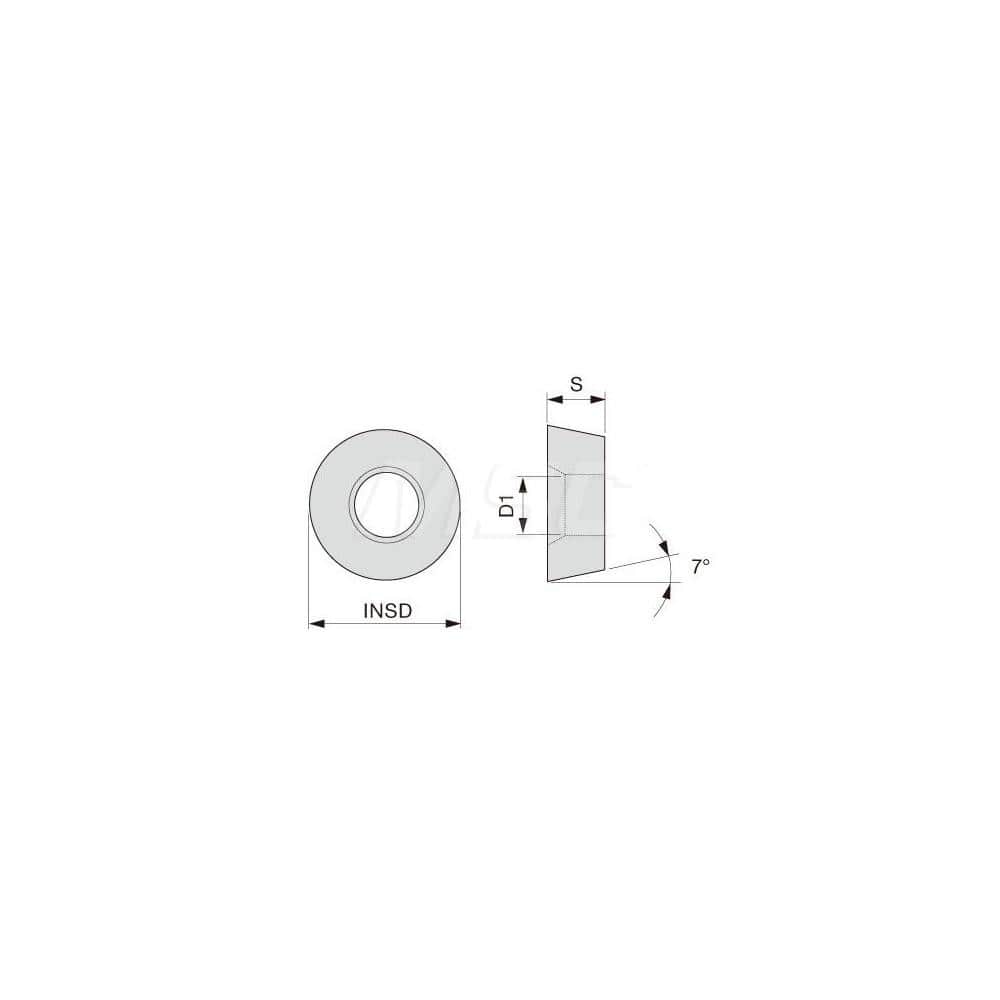

Product Specifications
| Insert Style | RCMM |
| Insert Size Code | 1204 |
| Insert Shape | Round |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Included Angle | 0.0 |
| Relief Angle | 7 |
| Series | RCMM |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | RCMM1204M061TH10 |
| Iso Code | RCMM1204M0-61 TH10 |
| Chip Breaker | 61 |
| Coating/Finish | Uncoated |
