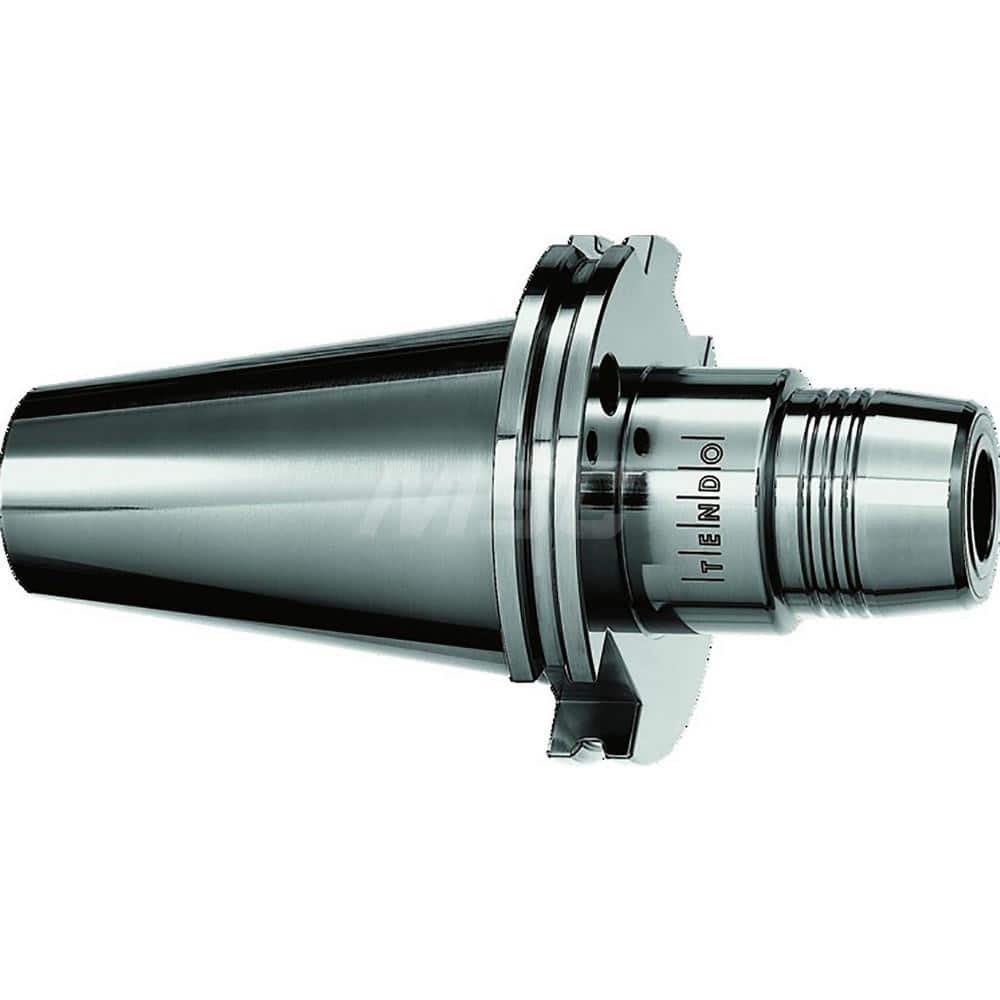

Hydraulic Tool Chuck: CAT50, CAT50, Taper Shank, 12.7 mm Hole 81 mm Projection, 46.2 mm Nose Dia, 46 mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 26096701
Brand: Schunk
Model #: 1447935
Product Specifications
| Shank Type | Taper |
| Connection Size | CAT50 |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.8189 |
| Nose Diameter (Mm) ( - 2 Decimals) | 46.20 |
| Projection (mm) | 81.00 |
| Projection (Decimal Inch - 4 Decimals) | 3.2000 |
| Clamping Depth (mm) | 46.00 |
| Clamping Depth (Decimal Inch) | 1.8110 |
| Balanced To Rpm | 25000 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Hole Diameter (Mm) ( - 0 Decimals) | 12.70 |
| Body Diameter (Decimal Inch) | 1.0591 |
