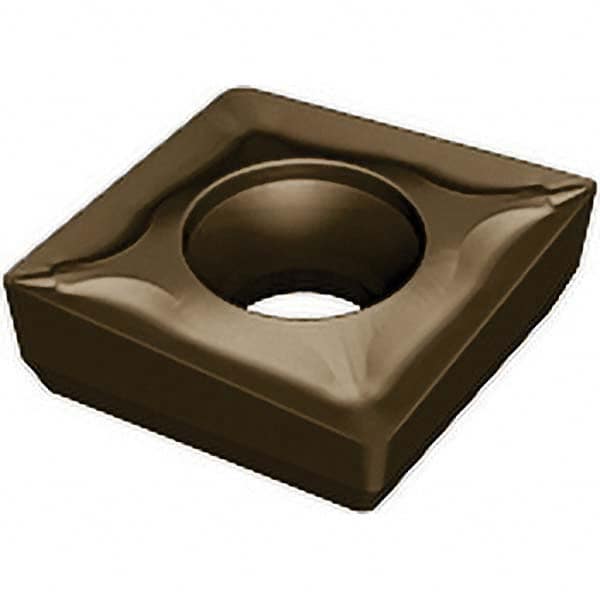

Allied Machine and Engineering - XCNT09T304 EN Grade CTCP425 Carbide Indexable Drill Insert
Item #: 12329959
Brand: Allied Machine and Engineering
Model #: 11838413
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XCNT |
| Insert Size | 09T304 |
| Material | Carbide |
| Manufacturer's Grade | CTCP425 |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Width (Decimal Inch) | 0.3540 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Shape | Square |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 7 |
| Included Angle | 88 |
| Cutting Direction | Neutral |
| Chipbreaker | EN |
