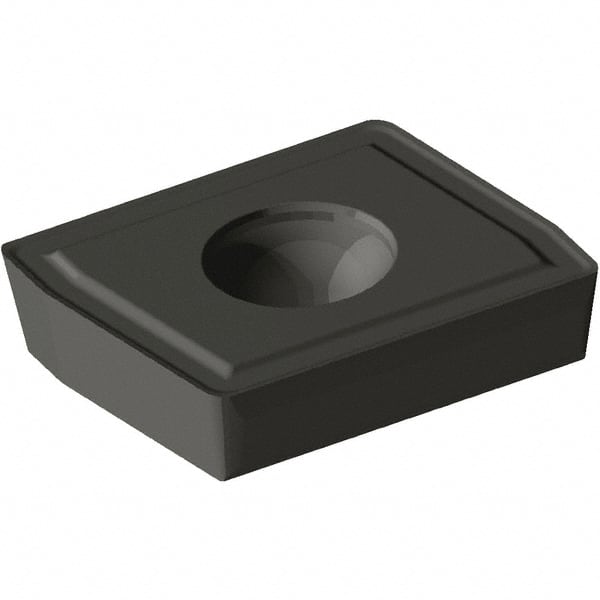

Kennametal - DFC040310 HPF Grade KCU40 Carbide Indexable Drill Insert
Item #: 95914073
Brand: Kennametal
Model #: 6379468
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | DFC |
| Insert Size | 040310 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (Decimal Inch) | 0.3010 |
| Length (Decimal Inch) | 0.3940 |
| Width (Decimal Inch) | 0.3010 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Shape | Diamond |
| Hole Diameter (Decimal Inch) | 0.1120 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | HPF |
