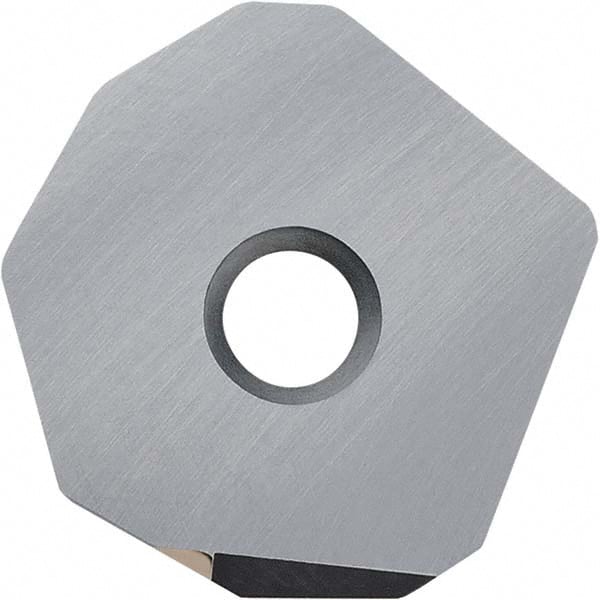

Kyocera - PNEG1106 W Grade KBN475 CBN Milling Insert
Item #: 12581336
Brand: Kyocera
Model #: 8860933
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | PNEG |
| Insert Size | 1106 |
| Material | CBN |
| Manufacturer's Grade | KBN475 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.7110 |
| Thickness (Decimal Inch) | 0.2559 |
| Primary Workpiece Material | K |
| Relief Angle | 0.000 |
| Rake | Negative |
| Coating Process | Uncoated |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| Chipbreaker | W |
| Manufacturers Catalog Number | PNEG1106XNTRT01015W KBN475 |
| ISO Number | PNEG1106XNTR-T01015W |
| ANSI Number | PNEG1106XNTRT01015WKBN475 |
| Cutting Direction | Right Hand |
| Series | PNEG |
| Insert Holding Method | Screw |
