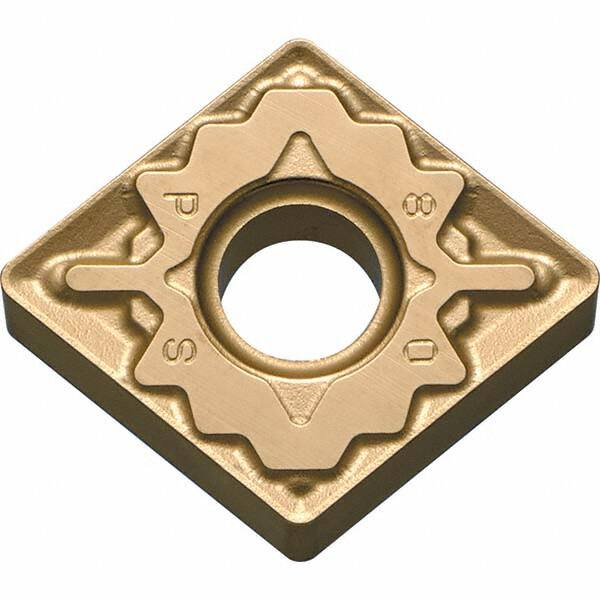

Kyocera - CNMG432 PS Grade PV720 Cermet Turning Insert
Item #: 96205232
Brand: Kyocera
Model #: 8862556
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Chip Breaker | PS |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120408PS |
| Rake | Negative |
| Coating Process | PVD |
| Manufacturers Catalog Number | CNMG432PS PV720 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
