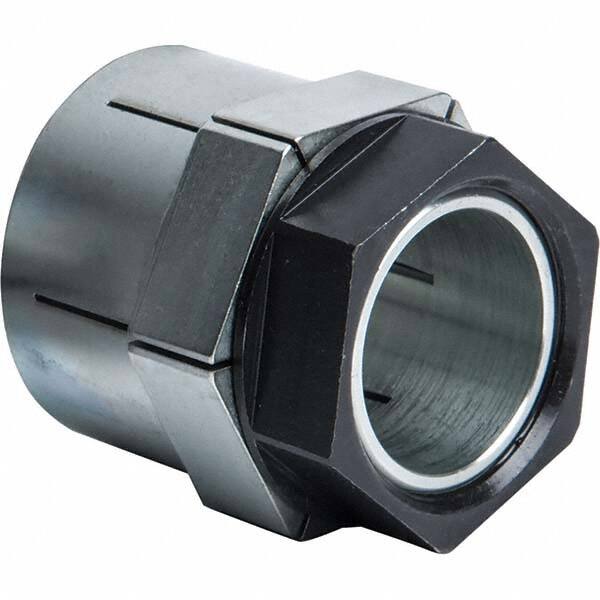

Climax Metal Products - Shaft Mounts Bore Diameter: 35.000 (mm) Contact Pressure on Hub (psi): 5,195.000
Item #: 19063569
Brand: Climax Metal Products
Model #: C801M-035
Product Specifications
Shaft Mounts; Bore Diameter: 35.000 (mm); Contact Pressure on Hub (psi): 5,195.000 ; Contact Pressure on Shaft (psi): 10,007.000 ; Maximum Torque Inch/Lbs: 1,453.00 (Pounds); Maximum Transmissible Thrust: 12,402.000 (Pounds); Outside Diameter (mm): 60.5000
| Bore Diameter (mm) | 35.000 |
| Contact Pressure on Hub (psi) | 5195.000 |
| Contact Pressure on Shaft (psi) | 10007.000 |
| Maximum Torque Inch/Lbs (Pounds) | 1453.00 |
| Maximum Transmissible Thrust (Pounds) | 12402.000 |
| Outside Diameter (mm) | 60.5000 |
| Overall Length (mm) | 69.9000 |
| Collar Thickness (mm) | 25.500 |
| Maximum Torque Newton/Meter | 608.0000 |
