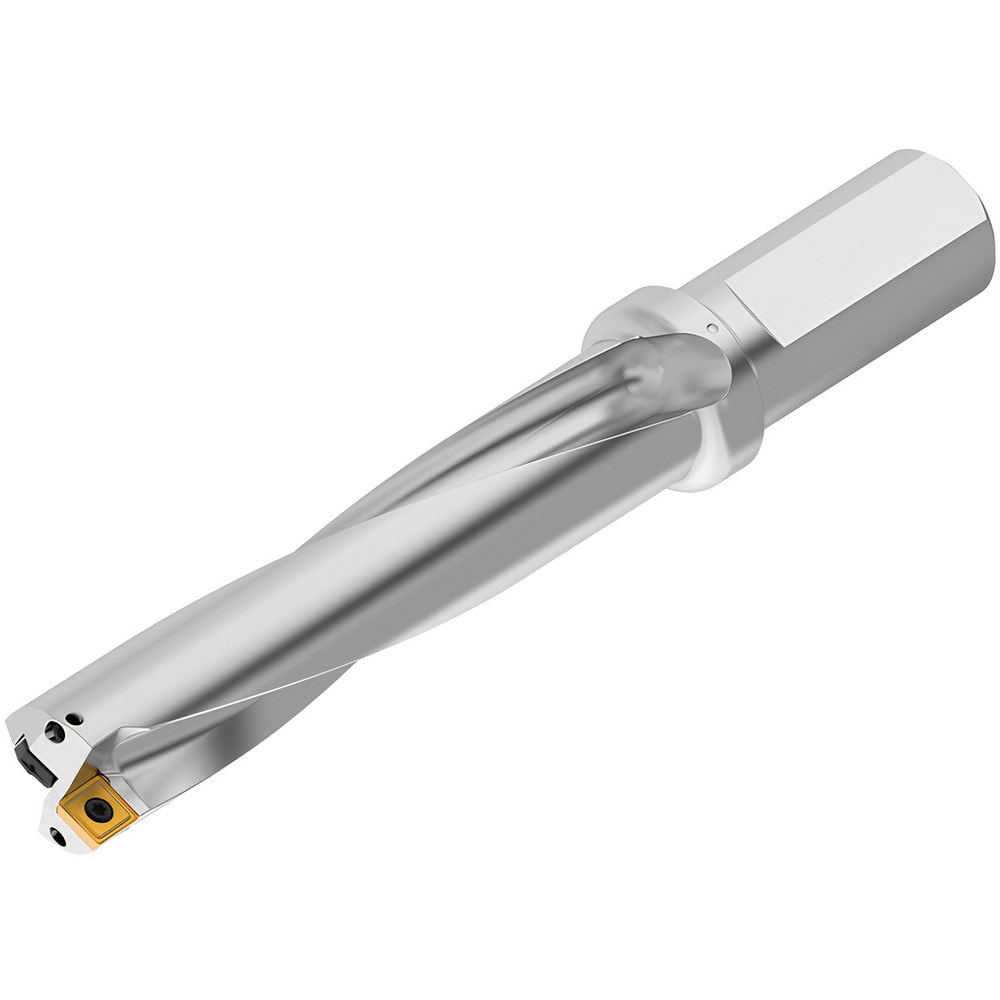

Indexable Insert Drill: DFPR390R5WB40M, 40.00 mm Max Dia, 195.00 mm Max Depth, 5xD, 40.00 mm Shank Dia
Item #: 02072221
Brand: Kennametal
Model #: 7030649
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 40.00 |
| Maximum Drill Depth (mm) | 195.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 140406; 140408 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 195.00 |
| Body Length | 221.00 |
| Shank Length (mm) | 70.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 14.45x4.40; 13.55x4.40 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR140406__I; DFPR140408__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M4.5-0.75x10.2T15 |
| Coolant Through | Yes |
