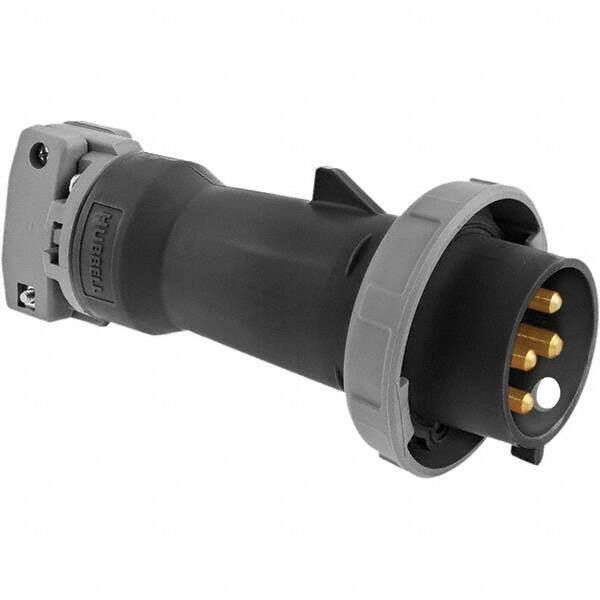

Hubbell Wiring Device-Kellems - Pin & Sleeve Plugs & Connectors Connector Type: Plug Pin Configuration: 2
Item #: 62057344
Brand: Hubbell Wiring Device-Kellems
Model #: HBL4100P5W
Product Specifications
Pin & Sleeve Plugs & Connectors; Connector Type: Plug ; Pin Configuration: 2 ; Number of Poles: 3 ; Amperage: 100 ; Voltage: 600 VAC ; Maximum Cord Grip Diameter (Decimal Inch): 1.9400
| Connector Type | Plug |
| Pin Configuration | 2 |
| Number of Poles | 3 |
| Amperage | 100 |
| Voltage | 600 VAC |
| Maximum Cord Grip Diameter (Decimal Inch) | 1.9400 |
| Grounding Style | Self-Grounding |
| Minimum Cord Grip Diameter (Decimal Inch) | 1.0650 |
| Resistance Features | Watertight |
| Color | Black |
| Overall Length (Decimal Inch) | 12.6300 |
| Number of Phases | 3 |
| Ingress Protection Rating | IP69k |
| Material | Nylon |
| Standards Met | UL Classified to IEC 603091 IEC 60309-2; UL Listed; CSA Certified |
